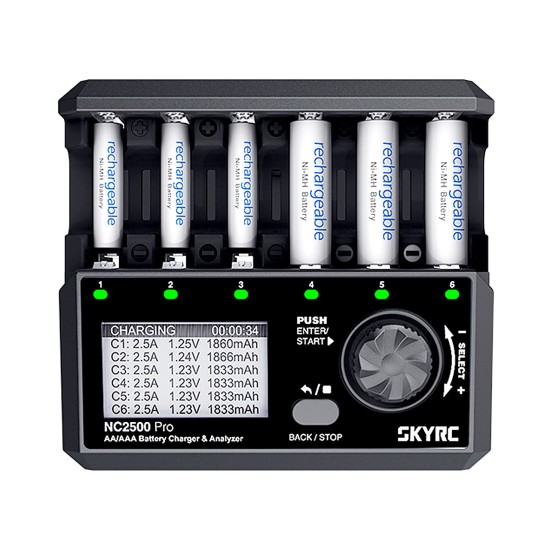

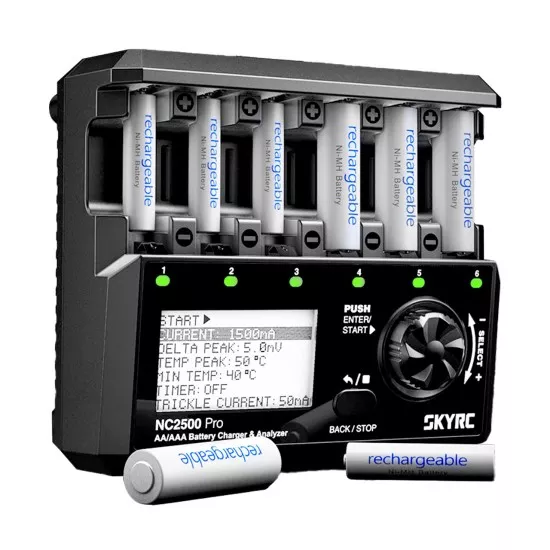

SkyRC NC2500 Pro Charger

SkyRC NC2500 Pro Charger

Bigger, faster and even more powerful - this is how the NC2500 Pro by SkyRC presents itself.

In contrast to its successors, the NC2500 can charge six NiMH/NiCd batteries (AA/AAA) simultaneously, but also completely independently.

And it's even faster than before thanks to the newly used USB QC3.0 technology. With its six slots, the charger reliably supplies the batteries with up to 2.5A.

Thanks to the brand new step charging, very different currents can also be set for the charging process, depending on the progress.

This is how You create Yourself a completely individual charging experience!

Furthermore, with the NC2500 Pro it is not only possible to make old batteries fit again, but also dusty motors.

This is due to the motor run-in function which ensures that a connected motor is warmed up again under controllable conditions.

And therefor for the next race after a long break, optimal performance can be teased out of the motor once again.

Features

4 operating modes as well as step charging with an appropriate current at each step

Charge: Charging batteries

Discharge: Discharging batteries

Refresh & Analyze: Measure battery performance based on capacity. Suitable for batteries that have been stored between 2 weeks and 3 months.

Break-In: Activation of batteries with short charge-discharge cycles. Suitable for batteries that have been stored for more than 3 months.

Automatic current adjustment to the determined battery resistance

6 independent charging slots, each with a status LED and adjustable all at once

User-friendly interface with the rotating button

Information shown on the display:

Current

Voltage

Capacity

Elapsed time

Operation mode

Motor run-in

Integrated reverse polarity protection

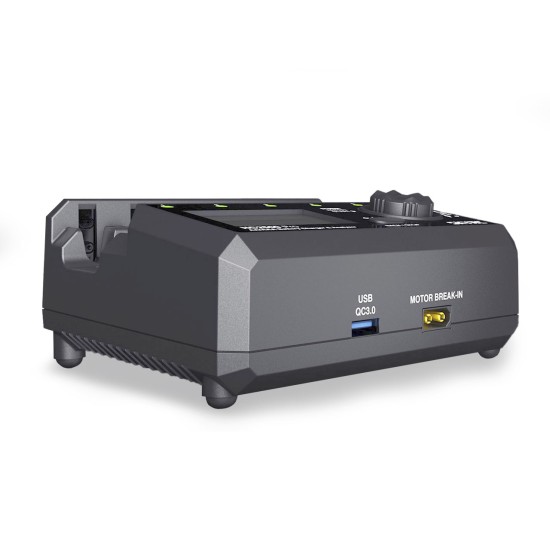

Faster charging thanks to USB QC3.0

Technical Specifications

Input Voltage: DC: 12V/3A

Compatible Batteries: NiMH, NiCd / AA, AAA

Charging Current: 0.1-2.5A

Discharging Current: 0.1-1.5A

Cutoff Voltage (Discharge): 0.8-1.0V (adjustable)

USB Output: QC3.0, 5V/3A, 9V/2A

max. 18W

-Delta V: 1-8mV (adjustable)

Trickle Current: 30-99mA/OFF

Over Temperature Protection: 55-65°C / 131-149°F (adjustable)

Weight: 600g

Dimensions: 148x135x65mm

Motor Run-In

Voltage: 0.5-6V

Current Limiting: 0.1-2.0A

Motor Run-In Direction: Auto / Forward /Reverse

Time: 1-60min (adjustable)

Delivery

- NC2500 Charger

- Manual (Englisch)

- Adapter 12V/3A
