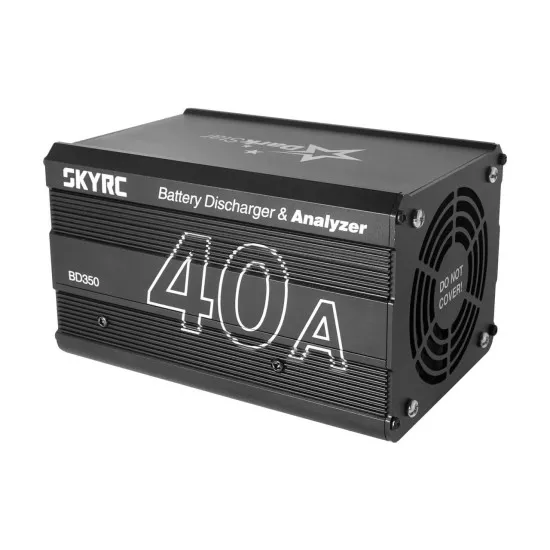

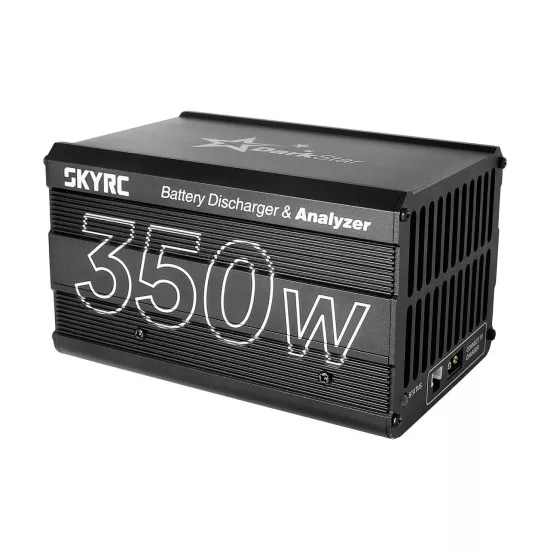

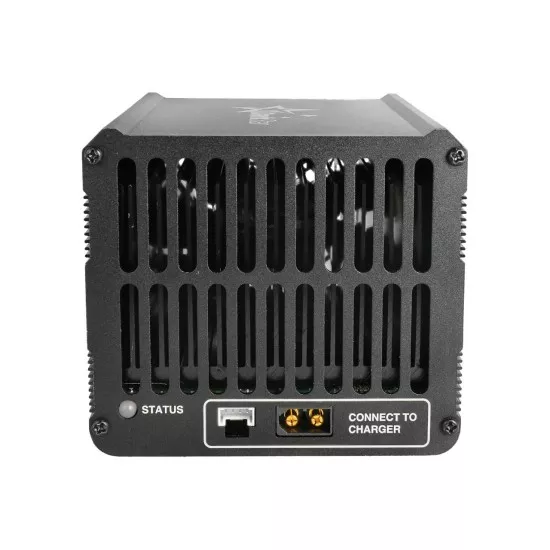

SkyRC BD350 Battery Discharger & Analyzer

SkyRC BD350 Battery Discharger & Analyzer

When connected to a suitable SkyRC charger, the BD350 discharger can be used to discharge a wide variety of RC batteries with ease.

A discharge current of up to 40A is possible while the possible maximum power lies around 350W.

If the Charge Master computer software is also being used, the BD350 becomes a powerful measuring instrument, as it allows the exact measurement of battery capacity and performance.

In this way, the best batteries can be identified quickly and can therefore be prepared for the next race.

Please note: Only the T1000 charger (SK100182-01) is currently supported.

Other compatible devices are already being planned by SkyRC.

Technical Specifications

Working Voltage: 5V (DC)

Discharge Power: 350W

Discharge Current: 0.1 - 40.0A

Over Temperature Protection: >95°C

Working Temperature: 0 ~ 40°C

Working Humidity: 0 ~ 75%

Weight: 1224g

Dimensions: 157 x 105 x 93mm

Delivery

1x BD350 Battery Discharger & Analyzer

1x XT60 cable
