RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard BodySet

RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard BodySet

Take a trip down memory lane with the RC4WD Trail Finder 2 “LWB” RTR W/ Chevrolet K10 Scottsdale Hard Body Set! This stunning 1/10 scale replica captures the iconic details of the Scottsdale trim level found on K10 trucks from the 70s! Featuring a molded drop bed, functional tailgate, molded interior, and an opening hood, this model comes packed with details!

The Trail Finder 2 "LWB" chassis has a 12.3" wheelbase and comes loaded with an R3 Single Speed Transmission, 540 45T Crawler Brushed Motor, RC4WD Ultimate Scale Shocks, and Outcry III Waterproof ESC, ensuring performance and handling!

Own the ultimate tribute to the iconic K10 today!

1/10 Chevrolet K10 Scottsdale Hard Body Complete Set

Chevrolet Blazer Chrome Front Grille w/ Optional Inserts

Pre-installed Led Light Set

Rally 1.9" Beadlock Wheels (Silver)

RC4WD BFGoodrich Mud Terrain KM 1.9" Scale Tires

K44 Ultimate Scale Cast Axles

Super Scale 70mm White Shocks w/ Internal Springs

Soft Steel Leaf Springs

540 Crawler Brush Motor 45T

R3 Single Speed Transmission

Center Mounted Hammer Transfer Case

Twister High Torque Metal Gear Digital Servo

Outcry III Waterproof Esc

6-Cell 3000mAh Battery w/ XT60 Plug

Rc4wd Marlin Crawler Side Plastic Sliders

Front Inner Fender Set

XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio

Universal Nimh Peak Battery Charger

Hammer Transfer Case

Ratio: 1.47:1

Gears: Wide .8 Mod Hardened Steel Gears

Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 1:4.57

Internal Ratio: 1.78:1

Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

K44 Ultimate Scale Cast Axles

Ratio: 2.67:1

Hex To Hex Width: 177mm (6.96")

Shock Absorbers

Super Scale 70mm White Shocks with Internal Springs

Wheels

Type: Rally 1.9" Beadlock Wheels (Silver)

Hub: 12mm Hex

Width: 1.29in / 33.0mm

OD: 2.14in / 54.0mm

Tires

Type: RC4WD BFGoodrich Mud Terrain KM 1.9" Scale Tires

Outer Diameter: 100.0mm (3.9")

Width: 42.0mm (1.65")

Inner Diameter: 48mm (1.89")

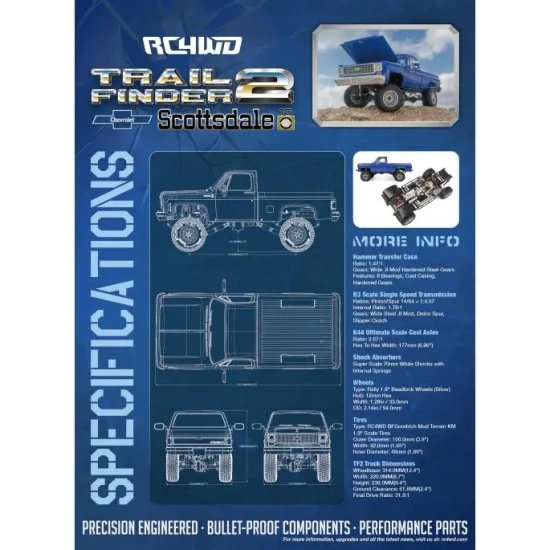

TF2 Truck Dimensions

Wheelbase: 314mm (12.4")

Width: 220mm (8.7")

Height: 238mm (9.4")

Ground Clearance: 61.6mm (2.4")

Final Drive Ratio: 31.9:1

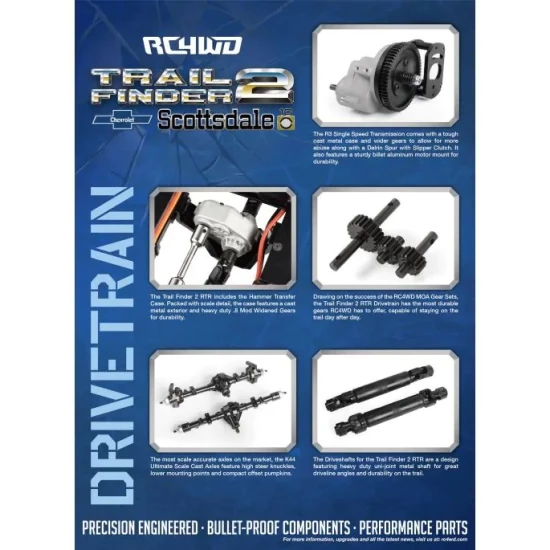

DRIVETRAIN

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The Trail Finder 2 RTR includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and heavy duty .8 Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 RTR Drivetrain has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

The most scale accurate axles on the market, the K44 Ultimate Scale Cast Axles feature high steer knuckles, XVD's, lower mounting points and a compact offset front pumpkin.

The Driveshafts for the Trail Finder 2 RTR are a design featuring heavy duty uni-joint metal shaft for great driveline angles and durability on the trail.

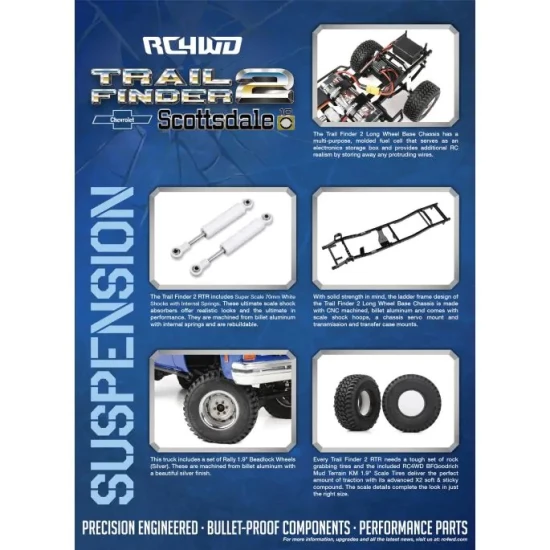

SUSPENSION

The Trail Finder 2 Long Wheel Base Chassis has a multi-purpose, molded fuel cell that serves as an electronics storage box and provides additional RC realism by storing away any protruding wires.

The Trail Finder 2 RTR includes Super Scale 70mm White Shocks with Internal Springs. These ultimate scale shock absorbers offer realistic looks and the ultimate in performance. They are machined from billet aluminum with internal springs and are rebuildable.

With solid strength in mind, the ladder frame design of the Trail Finder 2 Long Wheel Base Chassis is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount and transmission and transfer case mounts.

This truck includes a set of Rally 1.9" Beadlock Wheels. The wheels are stamped steel and have a smooth silver finish with a chrome beauty ring for that extra scale detail.

Every Trail Finder 2 RTR needs a tough set of tires to hit the trails and the included RC4WD BFGoodrich Mud Terrain KM 1.9" Scale Tires deliver the perfect amount of traction with its advanced X2 soft & sticky compound. The scale details complete the look in just the right size.

DETAILS

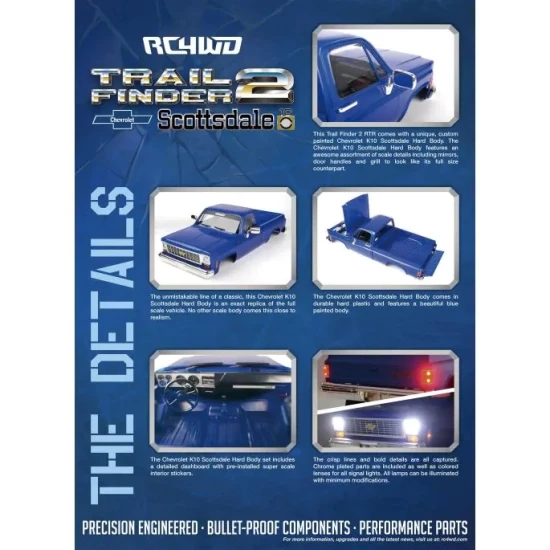

This Trail Finder 2 RTR comes with a unique, custom painted Chevrolet K10 Scottsdale Hard Body. The Chevrolet K10 Scottsdale Hard Body features an awesome assortment of scale details including mirrors, door handles and grill to look like its full size counterpart.

The Chevrolet K10 Scottsdale Hard Body constructed of durable hard plastic and with unmistakable classic lines, this Chevrolet K10 Scottsdale Hard Body is an exact replica of the full-size vehicle. No other scale comes so close to realism.

This Chevrolet K10 Scottsdale Hard Body comes with two front Grille Inserts for you to choose according to your preference.

The Chevrolet K10 Scottsdale Hard Body set includes a improved detailed dashboard and preinstalled super scale interior decals. As well as a set of door panels.

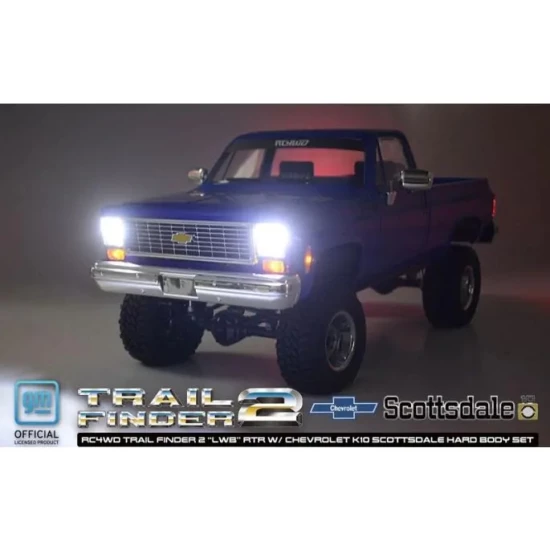

The crisp lines and bold details are all captured. Chrome plated parts are included as well as colored lenses for all signal lights. Comes with a pre-installed LED light set that's out of sight, keeping that scale realism. Picture shows all lights illuminated in a dark environment.

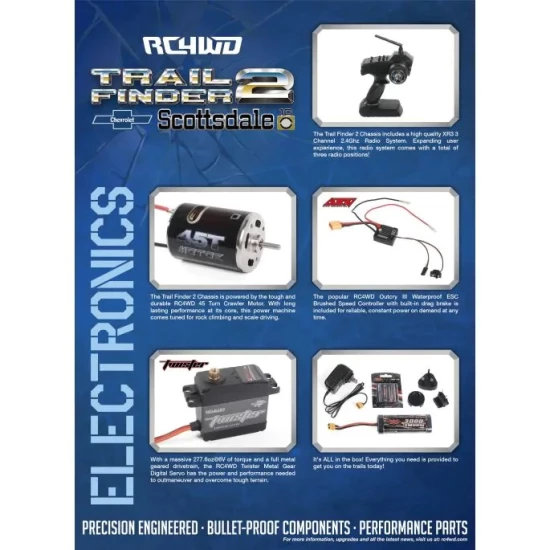

ELECTRONICS

The Trail Finder 2 includes a high quality XR3 3 Channel 2.4Ghz Radio System. Expanding user experience, this radio system comes with a total of three radio channels!

The Trail Finder 2 Chassis is powered by the tough and durable RC4WD 45 Turn Crawler Motor. With long lasting performance at its core, this power machine comes tuned for rock climbing and scale driving.

The popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller with built-in drag brake is included for reliable, constant power on demand at any time.

With a massive 277.6oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and performance needed to outmaneuver and overcome tough terrain.

It's ALL in the box! Everything you need is provided to get you on the trails today!
