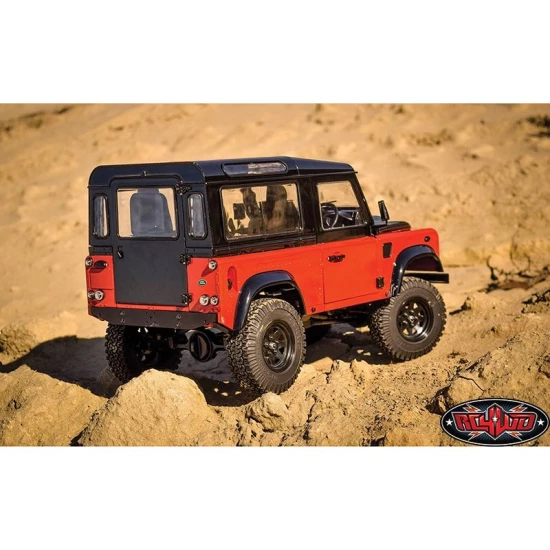

Experience the versatility and advanced design of the G2 for yourself. Packed full of capability, the G2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.

The G2 is built from quality craftmanship and features premium parts like the R3 single speed transmission which provides power down to the transfer case and out to the Yota 2 axles.

The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.

The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!

Are you ready for your off-road experience?

Custom Designed for True To Scale Looks

Realistic Aluminum Ladder Frame Chassis

R3 Single Speed Transmission

Center Mounted Realistic 4x4 Transfer Case

Cast Metal Axles with Locked Differentials

3 Link Front and 4 Link Rear Suspension

1.9" Stamped Steel Beadlocks w/Lug Nuts

Super Grip Dirt Grabber Tires

Chassis Mounted Steering Servo

Dual Spring Oil Filled Shock Absorbers

Hammer Transfer Case

Ratio: 1.47:1

Gears: Wide .8 Mod Hardened Steel Gears

Features: 8 Bearings, Cast Casing,

Hardened Gears

R3 Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 4.57:1

Internal Ratios: 1.78:1

Gears - Wide Steel .8 Mod, Delrin Spur,

Slipper Clutch

Cast Yota II Axles

Ratio: 15/40 = 2.67:1

Width at Hex 180.5mm

G2 Suspension

Double Triangulated 4 Link Rear Suspension.

3 Link Front Suspension with Panhard Bar

Shock Absorbers

Dual Spring 80mm Shocks - Can be Oil Filled

Wheels

Type: 1.9'' 5 Lug Wagon Wheels

Hub: Pin Type

Width: 25mm

Back Spacing: 11mm

Bumpers

Machined Billet Aluminum, Lightweight

G2 Truck Dimensions

Wheelbase: 275mm (10.8")

Length: 440mm (17.3")

Width: 220mm (8.7")

Height: 140mm (5.5")

Ground Clearance: 50mm (1.97")

Final Drive Ratio: 31.9:1

Weight: 1.79Kg / 3.95Lbs

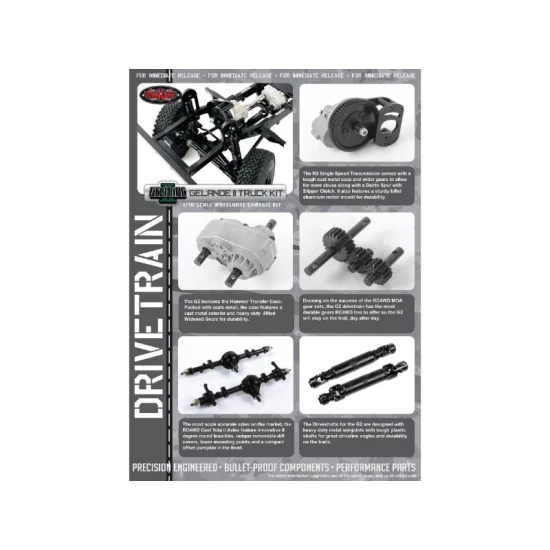

DRIVETRAIN

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The G2 includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and heavy duty .8Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA gear sets, the G2 drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The Driveshafts for the G2 are designed with heavy duty metal uni-joints with tough plastic shafts for great driveline angles and durability on the trails.

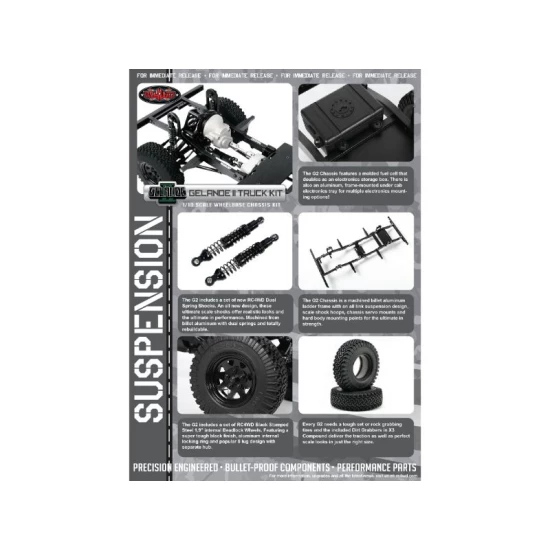

SUSPENSION

The G2 Chassis features a molded fuel cell that doubles as an electronics storage box. There is also an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options!

The G2 includes a set of new RC4WD Dual Spring Shocks. An all new design, these ultimate scale shocks offer realistic looks and the ultimate in performance. Machined from billet aluminum with dual springs and totally rebuildable.

The G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength.

The G2 includes a set of RC4WD Black Stamped Steel 1.9" internal Beadlock Wheels. Featuring a super tough black finish, aluminum internal locking ring and popular 5 lug design with separate hub.

Every G2 needs a tough set or rock grabbing tires and the included Dirt Grabbers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

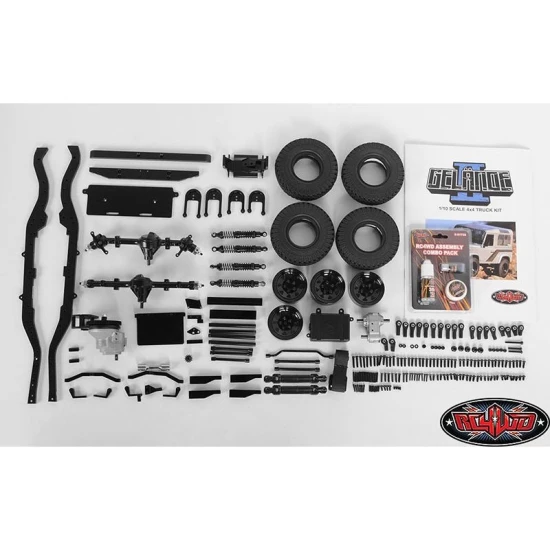

What's Included:

1x RC4WD Gelande II Truck Kit 1/10 Chassis Kit

This chassis kit requires building time of approximately 2-3 hours depending on your experience level

Notes:

While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.

Use good quality hex drivers to avoid stripping screw heads.

Use thread lock when putting metal screws into metal parts.

Steps marked with an asterisk (*) require thread lock.

Use thread lock sparingly.

Do not over tighten screws otherwise you may strip the thread.

Spare Wheel and Tire not included

Fits RC4WD ARB Front Winch Bar Bumper for Gelande II D90/D110 (Z-S0853), but should work with RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates.

Required to Complete:

Truck Kit

Hex Drivers (1.5mm, 2mm, 2.5mm)

Long Nose Pliers

Associated Thread Locking Adhesive

Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics:

Motor (35t, 45t, or 55t)

Radio and Receiver (2 channel or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)

1x Twister High Torque Metal Gear Digital Servo (Z-E0035)

Battery (Consult your "ESC" manual) Z-E0090 or 2 cell Lipo battery

Charger (Consult your battery guide) Chargers
