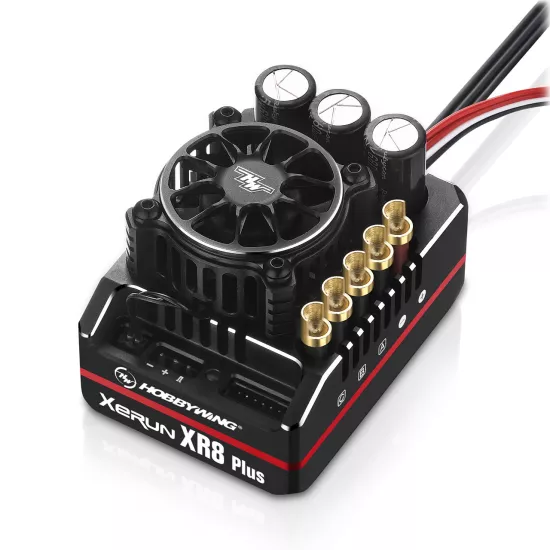

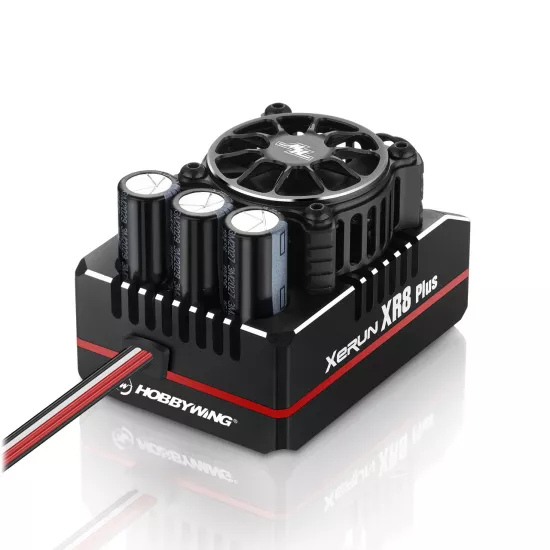

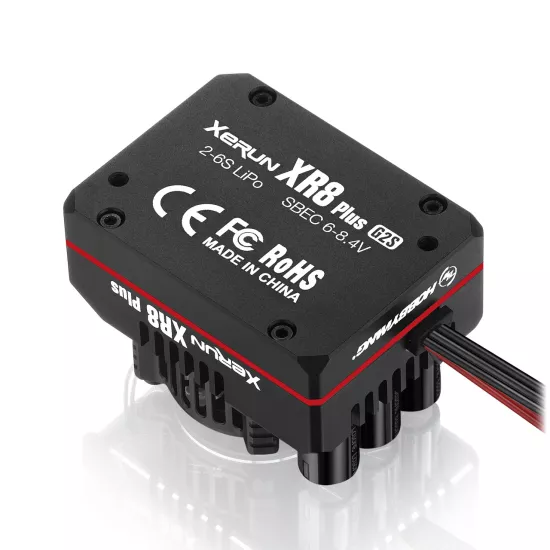

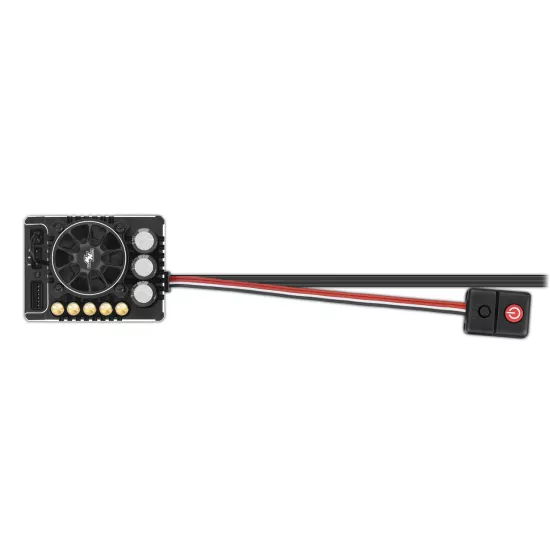

Hobbywing XERUN XR8 Plus G2S 200A 1/8 Buggy/On Road Competition

Hobbywing XERUN XR8 Pro G2S 200A 1/8 Buggy/On Road Competition

The XR8 Plus G2S ESC is the next development of a 1/8 ESC series with 6 RPM limit profiles.

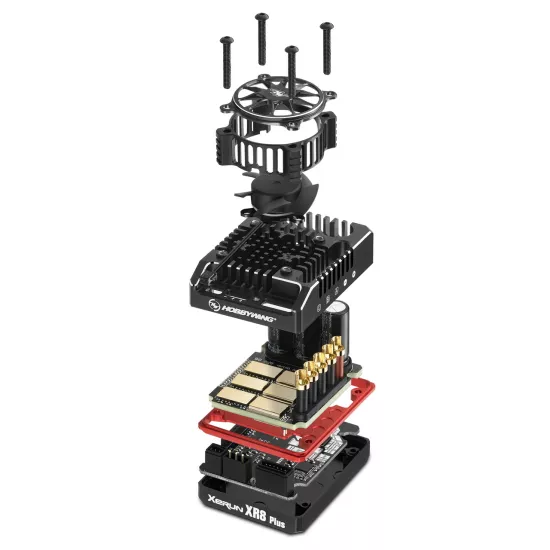

An efficient system for heat regulation ensures less heat development than with other controllers, because thanks to the strong airflow on the sides of the fan and the copper heat sink inside, the XR8 is optimally protected.

This is also urgently needed in some heat-up races.

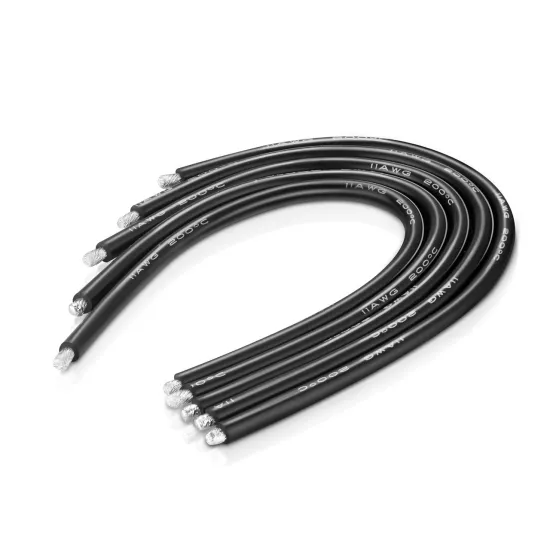

Designed for the use with 2-6S LiPos batteries, the ultra-soft cable routing made of 11AWG cables, the specially designed solder tags and the elegant appearance are examples of the high-quality workmanship.

In terms of functionality, the XR8 Plus G2S shines with an extended BEC of 6-8.4V in 0.1 steps, because a wide range of servos can be addressed.

The capacitor also brings security and protection. And those who value performance measurement themselves definitely want to check out the corresponding smartphone app.

If the XR8 ESC is linked to the Hobbywing application, the collected data can not only be evaluated, but also viewed in live-mode.

Features:

5 selectable profiles for all 1/8 RC car races

Zero-timing blinky mode

1/8 offroad racing

1/8 onroad racing

1/8 GT Racing

1/8 sport mode

Up to 30 different parameters can be set

Including 48° boost and turbo timing

Variable frequency control of the PWM and braking frequencies

Softening function for milder or wilder driving control and better driving efficiency

Various protective functions against

Polarity reversal

Overheating

Undervoltage shutdown

Loss of signal

Data logging of temperature, speed and much more

Firmware upgrades possible

Technical Specifications:

Type: Sensored/Sensorless Brushless Motor

Current (cont./peak): 200A / 1080A

Input Voltage: 2-6S LiPo

BEC:

6V - 8.4V

Strom (cont./peak): 6A/15A (Switch Mode)

Motor-Types: 4S LiPo: kV <3000 - 4268/4274 Motor

6S LiPo: kV <2400 - 4274 Motor

Fan: Yes, powered by BEC

Programming: - LCD Programming Box

- OTA Programming Module

Size: 56.1x42.1x38.5mm

Weight: 122g (w/o cables)

Applications: 1/8 On-Road/Off-Road/Truggy Racing

Accessories (optional):

HW30502001 LCD Programming Box

HW30850400 OTA Programming Module
