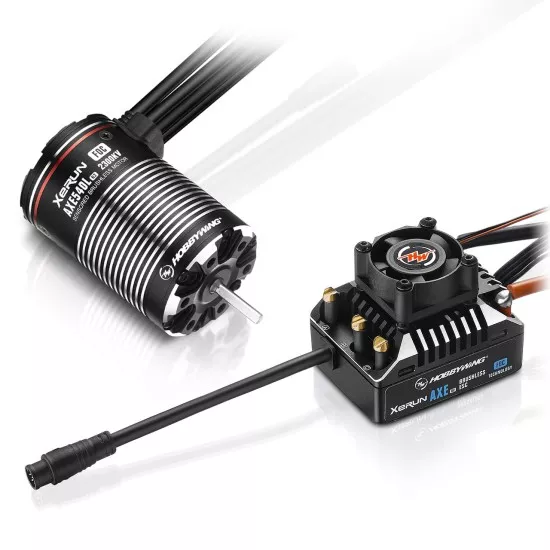

Hobbywing Xerun Axe540L R2-2300kV FOC Combo for Rock Crawler

Hobbywing Xerun Axe540L R2-2300kV FOC Combo for Rock Crawler

Intelligent torque and speed control for precise driving maneuvers!

The XeRun AXE "R2" brushless controller, connected to an associated AXE "R2" motor, automatically regulates torque and speed depending on the load requirement.

This technology is also called FOC (Field-Oriented Control) and is responsible for this really great driving experience.

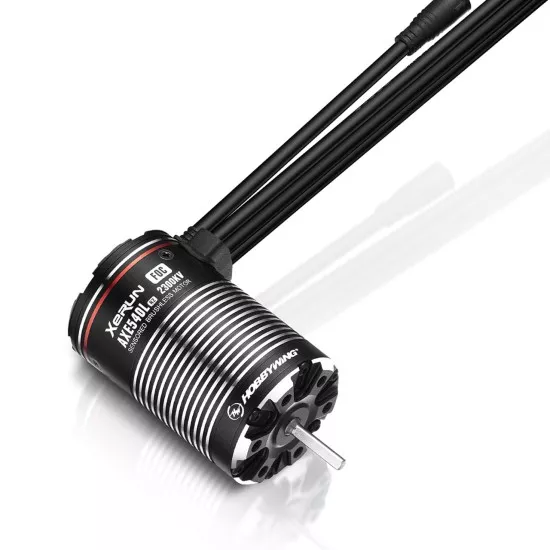

The XeRun AXE "R2" 540 motor with its 3.175mm shaft and 2300KV also contributes to this.

With the built in staggered pole rotor design patented by Hobbywing, the 4-pole motor has hardly any detent torque and runs smoothly under all conditions.

With the professional handbrake function, the car is now 100% immobile, even on the steepest slopes.

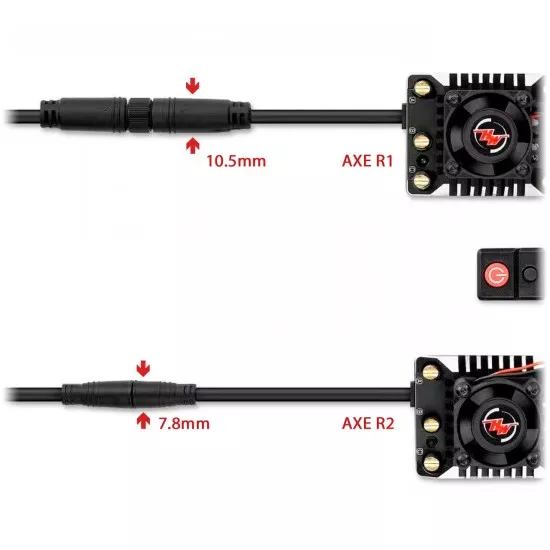

The motor and controller are both connected via an improved waterproof, special sensor plug.

The ESC also offers extensive setting options for all professionals.

Connected via Bluetooth and APP, relevant data can be read out, settings changed or firmware updates carried out, everything is simple and easy.

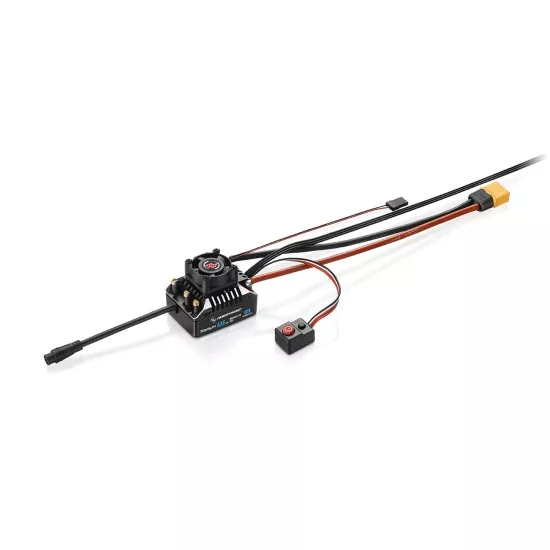

Technical Specifications ESC:

Type: Brushless FOC

Current cont./peak 80A/480A

Cells: 2s-3s LiPo, 6-9 Zellen NiMH

Motor Limits: Only XeRun-AXE "R2" Motors

BEC: 6V/7.4V - 6A

Programming: Bluetooth and APP "HW LINK"

Waterproof: Yes

Dimensions: 47.4 x 36.2 x 26.5mm

Weight: 108g

Application: 1/10 Rock Crawler

Technical Specifications Motor:

Type: Sensored Brushless FOC

Poles: 4

KV Rating: 2300KV

LiPo Cells: 2-3s

No-Load Current: 2.5A

Outer Diameter: 36.0mm

Length: 49.8mm

Shaft Diameter: 3.175mm

Shaft Length: 16mm

Waterproof: Yes

Weight: 185g

Application: 1/10 Rock Crawler
