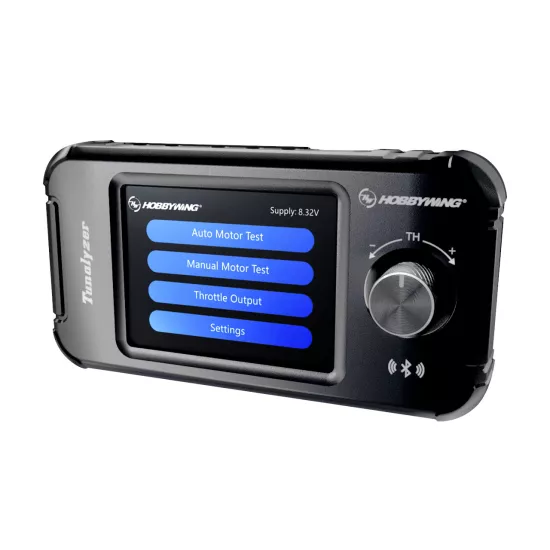

Hobbywing Tunalyzer Motortester

Hobbywing Tunalyzer Motortester

The Tunalyzer is the latest tool that Hobbywing recommends to any RC hobbyist who wants to achieve optimal results when selecting and maintaining motors.

Achieve meaningful and accurate results with 12 preset test parameters.

The measurement is supported, among other things, by the built-in voltage regulator, which ensures that comparable results are always obtained under the same voltage condition.

If You want to check Your motor with the Tunalyzer, there is no need to worry about compatibility.

After all, motors with up to 60 poles are supported without any problems.

It also doesn't matter whether the motor has a sensor or not, is brushed or brushless.

The best thing about it: The measured speed is displayed in real time. But not only motors can be subjected to a test here.

ESCs and servos can also be connected and tested with the Tunalyzer via the PWM connection, for example.

Features

A next generation motor tester and tuning tool

Accurate test results

Consistent and reliable

8 different auto test parameters

4 different manual test parameters

Bluetooth support for using the HW-Link app

Technical Specifications

Input Voltage: 6 - 16.8V (2 - 4S LiPo)

Motor Types: Sensored & Sensorless Brushless Motor

2 to 60 poles

Accuracy

(Current): +/- 0,01A

Accuracy

(Timing, Rotor, Signal): 0,1 Grad

Functionality: 1) Measure motor current / kV value / Rpm, End-bell timing / Deviation, Rotor asymmetry, Hall signal deviation and motor temperature

2) Set and upgrade the ESC (that supports the OTA Bluetooth module)

Size: 122.8 x 64.6 x 39mm (with knob height)

Weight: 144g
