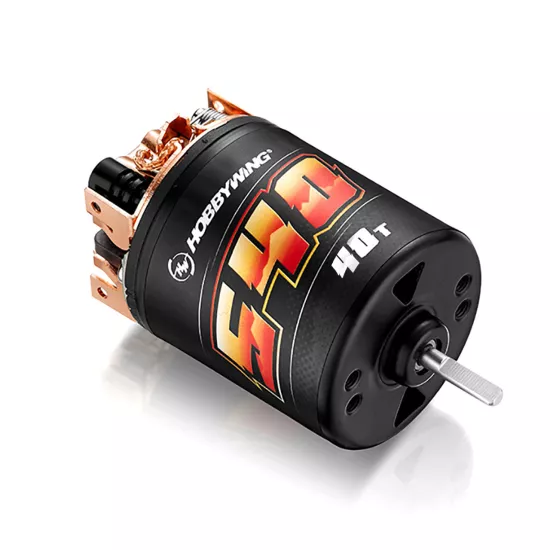

Hobbywing Quicrun Brushed 540 40 Turn Motor

Hobbywing Quicrun Brushed 540 40 Turn Motor

Thanks to its outstanding response and control, the 40T Quicrun Brushed 540 motor is ready for the next 1/10 scale adventure.

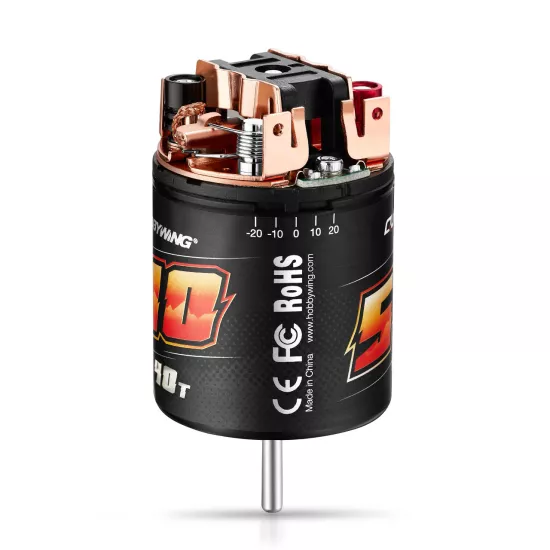

The adjustable motor timing can be selected in the range between -20° and +20°. And the more precisely this value is set to your own preferences, the better the driving experience.

Due to the high-quality materials used in the manufacturing process, the motors of this Quicrun Brushed series certainly meet the high demands of today's driving conditions.

These include the heat-resistant magnet and the built-in copper wires, which can withstand temperatures of up to 200°C.

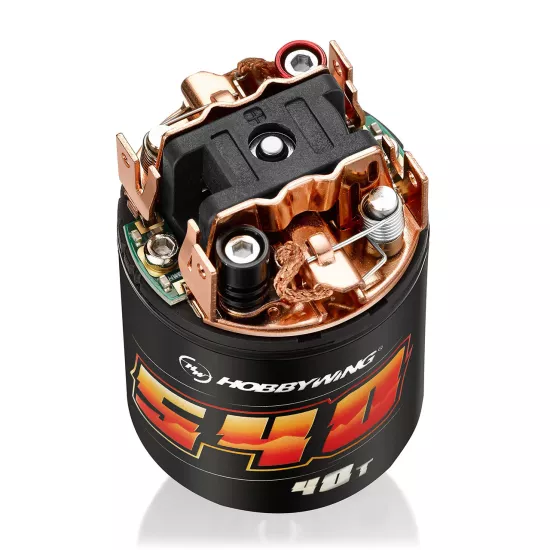

The brushes were specially developed so that, due to their extremely long service life, they give the impression of being brushless motors.

Another highlight is the permanently mounted PCB anti-interference boards, each with two soldered capacitors to ensure a less stressful driving experience.

Features:

Modern motor for 1/10 On-Road and Off-Road action

Great efficiency

Adjustable timing

Zero-togging torque design

Incl. PCB board to avoid interference

Easily dismantled for maintenance work

Technical Specifications:

Type: Brushed

Turns: 40T

RPM @ 7.4V: 10 500

Input Voltage: <=12.6V

Slots: 3

Length: 53.2mm

Diameter: 36mm

Shaft Diameter: 3.175mm

Weight: 169g

Application: 1/10 On-Road, Buggy,

Crawler & 2WD Truck
