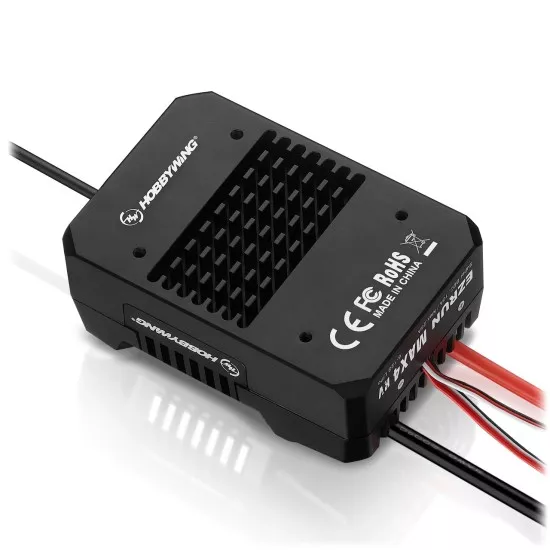

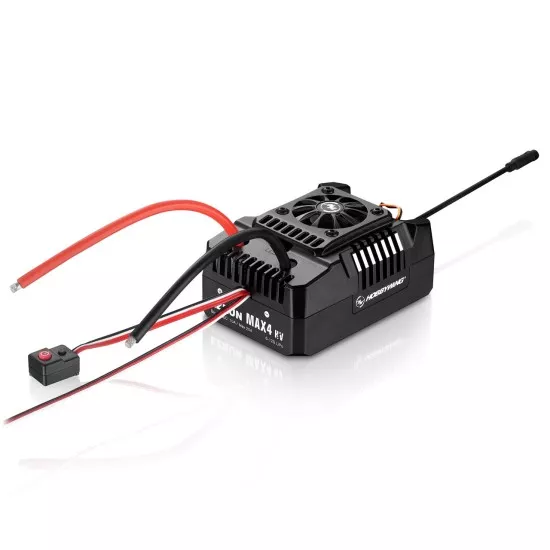

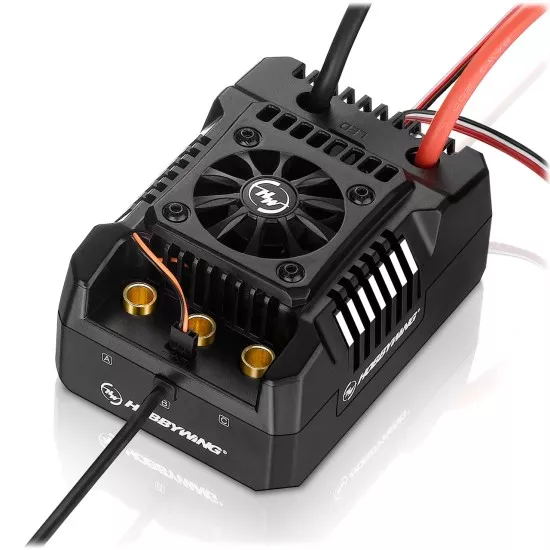

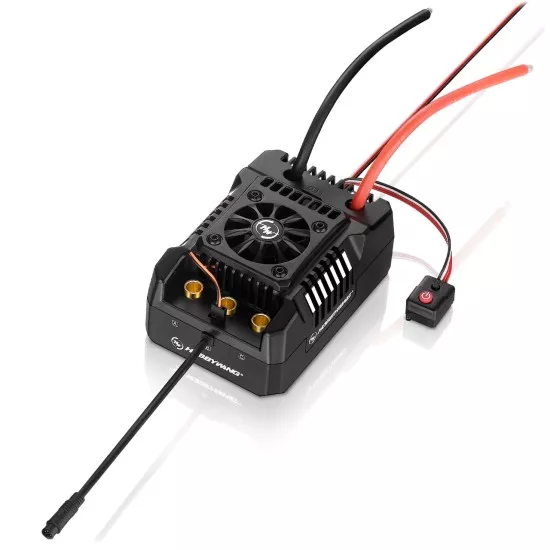

Hobbywing Ezrun MAX4-HV ESC Sensorless 300 Amp, 6-12s LiPo, BEC 10A

Hobbywing Ezrun MAX4-HV ESC Sensorless 300 Amp, 6-12s LiPo, BEC 10A

The Ezrun Max4 ESC is suitable for the particularly large 1:4 and 1:5 scale models.

This ESC can be ideally used in any named model, whether heavy-duty off-roader or trucks.

It is the ideal choice for high-end models that are heavily used or driven aggressively.

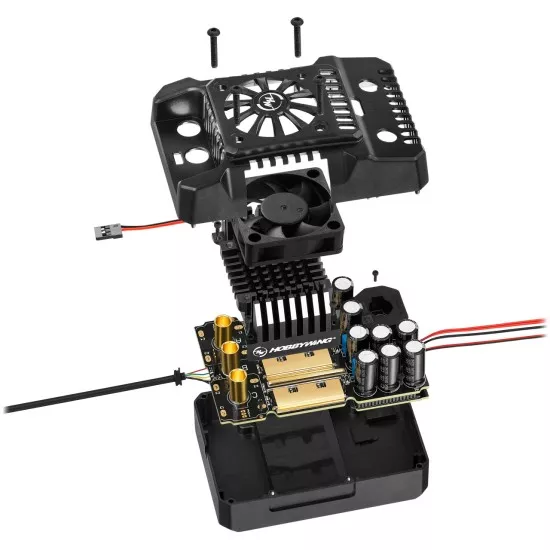

Despite its enormous size, care was taken to use high-quality and, above all, durable materials in the construction.

This is shown, for example, by the fact that the Max4 ESC is excellently protected against dust, water and similar external influences.

The electronic switch is also well protected against damage that could otherwise occur during normal driving.

In addition, the Ezrun Max4 has a built-in super high-current BEC, which can provide a max. output power of up to 25A.

The output voltage can be switched between 6V, 7.4V and 8.4V.

The high-current BEC was developed to supply the current high-current servos with sufficient power if required, and thus to be able to precisely control the appropriate large models.

Features

Super powerful switch mode BEC with a constant current of 10A, instant 25A and the ability to switch between 6, 7.4 and 8.4V

Fireproof circuitry to protect the battery plug

Other built-in protection mechanisms: cutoff voltage, overheating, signal loss, ...

Versatile programmable

Real time data recording

Technical Specifications:

Cont./Peak Current 300A / 2000A

Motor Type: Sensored/Sensorless Brushless Motors

Motor Limit: 12S LiPo: kV <= 600 (70125 Size)

LiPo-Cells: 6-12S

BEC: 6V / 7.4V / 8.4V with 10A (Switch Mode)

Fan: Yes (shared with fan interfaces)

Programming Port: Fan / PRG-Input

Programming: LED Program Card, LCD Program Box, OTA Program Module

Size: 125x85x61.7mm

Weight: 775.4g

Application: 1/4 and 1/5 Heavy Duty Off-Road, Trucks
