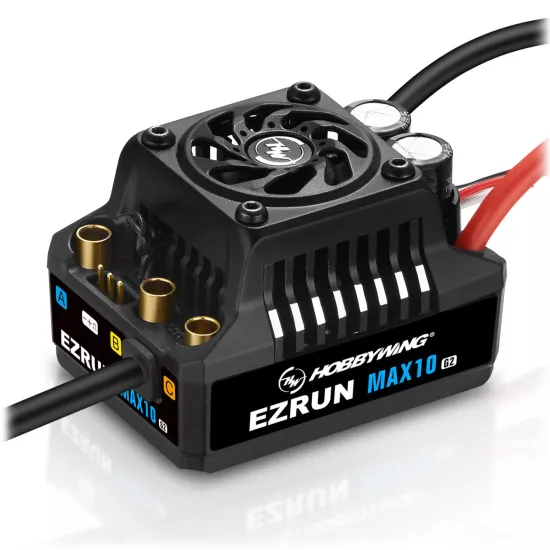

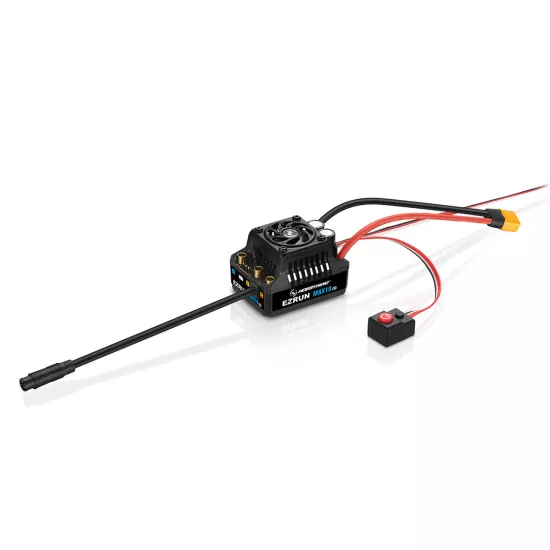

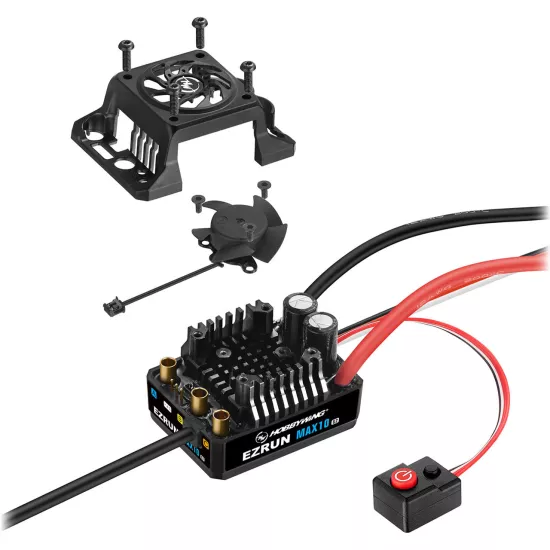

Hobbywing Ezrun MAX10 G2 ESC 80 Amp, 2-3s LiPo, BEC 5A

Hobbywing Ezrun MAX10 G2 ESC 80 Amp, 2-3s LiPo, BEC 5A

The second generation of the Ezrun Max10 ESCs with 80A brings with it a variety of innovations and optimizations that make driving 1/10 short courses and trucks even more enjoyable. For example, the improved sensor mode with accompanying waterproof cable provides great throttle response - especially when paired with an Ezrun 3652/3665 G3 motor. Compared with the previous generation, MAX10 G2 also has stronger power and more stable output power. At the same time, of course, this brings excellent linearity even at low speeds.

In terms of heat development, no other ESC can beat the MAX10 G2 so quickly.

Thanks to an innovative protection system, the capacity of the capacitors has also been increased by 74% and are at the same time protected against overheating.

Ultimately, this ensures better power transmission from the battery to the controller and overcharging is less likely than before.

Technical Specifications

Type: 1/10 Brushless Sensored

Current (cont./peak): 80A / 520A

Input Voltage: 2-3S LiPo

BEC: 6V/7.4V, 5A

Motor Types: Brushless Motors (with/without sensor)

Motor Limits: 2S LiPo: KV<= 6000

3S LiPo: KV<= 4200 3652 Motor

Fan: Yes, powered by BEC

Fan Size: 25x25x10mm

Programming: LED Program Card

LCD Program Box (G2)

OTA Program Module

Seperate Programming Port

Waterproof: Yes

Input: XT60

Output: 4.00mm Gold (female)

Dimensions: 53x39.5x37.2mm

Weight: 120g

Application: 1/10 On-Road/Off-Road Short Course Truck (light-duty)

Delivery:

MAX10 G2 80A ESC

Optional Accessories:

HW30501003 LED Program Card

HW30502001 LCD G2 Program Box

HW30850400 OTA Program Module
