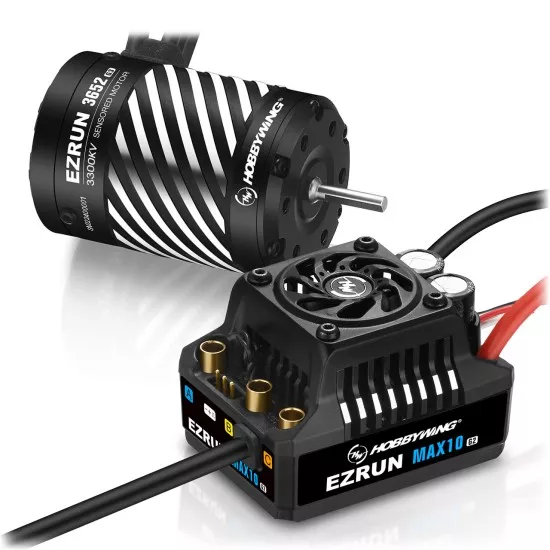

Hobbywing Ezrun MAX10 G2 80A Combo with 3652SD-3300kV 3,175 shaft

Hobbywing Ezrun MAX10 G2 80A Combo with 3652SD-3300kV 3,175 shaft

The Ezrun Max10 G2 Combo with its updated 80A ESC combo is here, including several updates and tweaks that make driving 1/10 short courses and trucks even more enjoyable.

The ESC comes with a 3652SD motor with 3300kV.

In a direct comparison to the regular MAX10 combo, it is clear that the sensor mode and the accompanying waterproof cable have been heavily revised and now ensure great throttle response.

The fantastic acceleration with stable output power as well as the nice linearity at low speeds are also among the aspects that have been particularly improved.

When it comes to heat development, the MAX10 G2 Combo really outperforms other comparable products.

This is partly due to the optimizations in the design and of course also due to the larger capacitors.

The perfect introduction to get started right away with a 1/10 car!

Features:

Improved sensor

Excellent throttle response

Even faster with its constant output power

Larger capacitors with up to 74% more capacity

Turbo timing adjustment up to 32°

4-pole rotor for high torque

Easily dismantled motor for maintenance work

Technical Specifications:

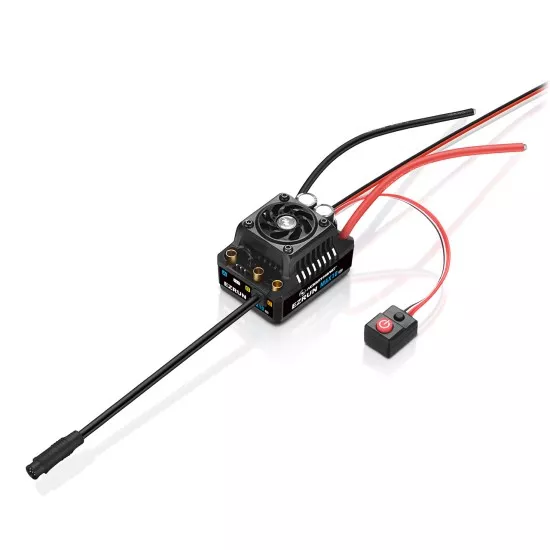

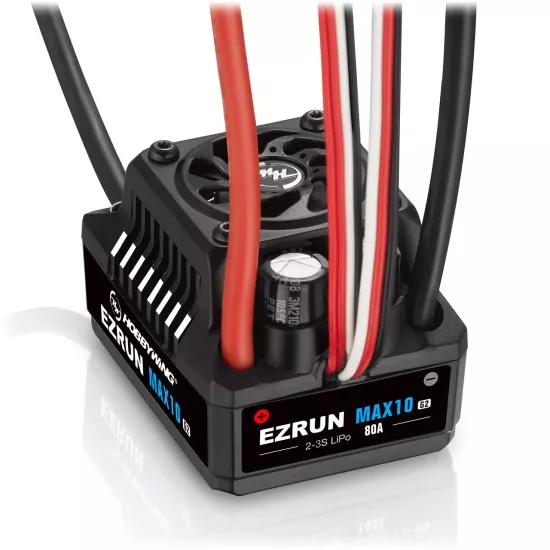

ESC (80A)

Type: Brushless Sensored

Current (cont./peak): 80A/520A

No. of Cells: 2-3S LiPo

Motor Limit:

2S LiPo: <= 6000kV

3S LiPo: <= 4200kV (3652 Motor)

BEC: 6V/7.4V, 5A

Plug: XT60

Dimensions: 53x39.5x37.2mm

Weight: 120g

Waterproof: Yes, IP67

Application: 1/10 On-Road/Off-Road Short Course Truck (light duty)

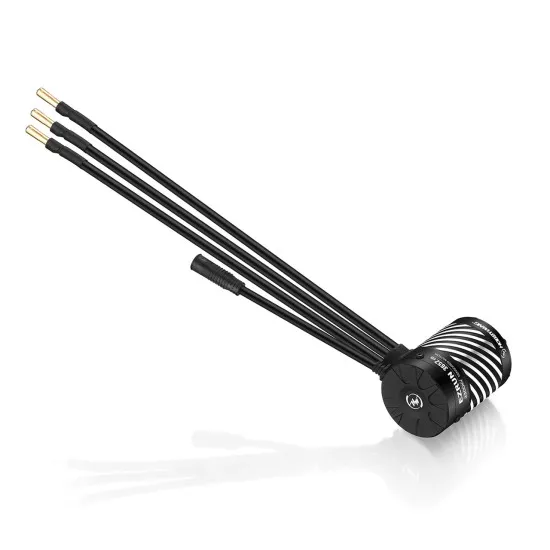

Motor

Type: Brushless, Sensored

kV Rating: 3300kV

No-Load Current: <=3.9A

No. of Cells: 2-3S LiPo

Poles: 4

Length: 53mm

Diameter: 37mm

Shaft Diameter: 3.175mm

Weight: 228g

Application: 1/10 On-Road/Off-Road Short Course Truck (light duty)

Delivery:

1x Ezrun MAX10 G2 ESC with 80A

1x 3652SD Motor G3 with 3300kV

1x Manual
