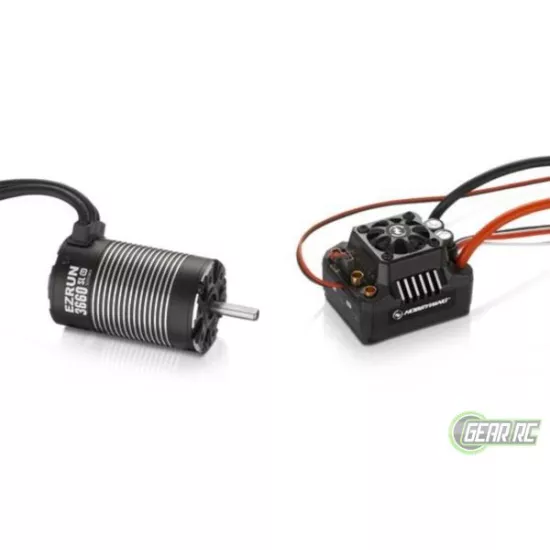

Hobbywing EzRun Combo MAX10 SCT 3660SL, 4000kv, 1/10 Waterpr

Vervangende nummer HW38020345

Hobbywing EzRun Combo MAX10 SCT 3660SL, 4000kv, 1/10 Waterproof

Best suited for 1/10th SCT, Trucks and Monster Trucks.

Advanced and Secure Electronic Switch

The MAX10 SCT features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-prood and shock-resistant design.

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Reliability & Durability

Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applicatinos, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.

Great Flexibility & Versatility

With incredible acceleration capabilities and a rock-solid, stable output, the MAX10 SCT can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrian.

The user will have the choice of adusting the ESC parameters as per his perference and ability.

Innovative Filter Capacitor Thermal Protection

The filter capacitor thermal protection first implemented in the MAX10 SCT will effectively protect capacitors from exploding and causing irreversible damage to the ESC due to overload.

Regular Firmware Updates Free of Charge

You can upgrade the MAX10 SCT with the HobbyWing USB LINK software, a multifunction LCD program box and a laptop. HobbyWing updates its ESC firmware regularly giving you upgraded features more often when available.

Wide Applicability

This MAX10 SCT ESC is applicable to various 1/10th scale vehicles like trucks, short-course trucks, monster trucks, and etc.

Specifications

Cont./Peak Current - 120A/760A

Input - 2-4S LiPo/6-12 Cells NiMH

BEC Output - Switch Mode:6V/7.4V,3A

Type

Scale - 1/10th

Brushed/Brushless - BL

Sensored/Sensorless - SL

Waterproof - Yes

Wires & Connectors

Input Wires - Red-12AWG-200mm*1/Black-12AWG-200mm*1

Output Wires - Black-12AWG-200mm*3

Input Connectors - No

Output Connecotors - 4.0 Bullet Connectors (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

Fan

Size - 25.0x25.0x10.0mm

Voltage Range - 5-7.4V

Powered by - Powered by BEC

ESC Programing via

SET Button on ESC - Supported

LED Program Box - Supported

LCD Program Box - Supported

WiFi Module - Supported

Program Port - FAN/Program Port

Firmware

Firmware Upgrade - Supported

Size & Weight

Size - 49.0x39.5x34.7mm

Weight - 105g

Applications

Motors - SL BL Motors/SD BL Motors(only in SL mode)

Vehicles - 1/10thSCTs/Truck/Monster Truck

KV Rating/T Count - 2S LiPo:KV=6000;3S LiPo:KV=4000;4S LiPo:KV=3000(36XX Series of Motors
