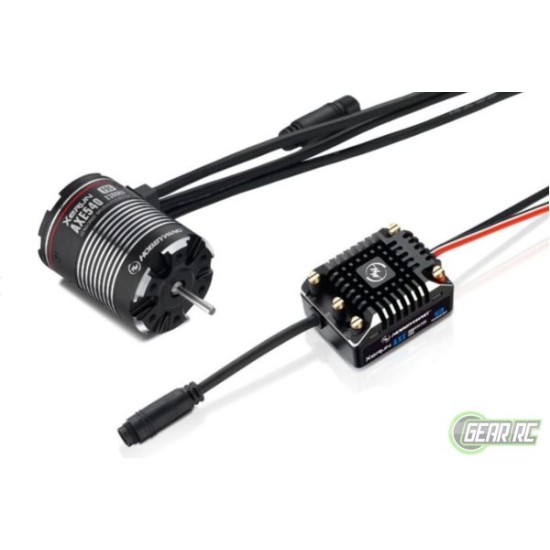

Hobbywing Combo XeRun AXE540 2300kv FOC Sensored Brushless System

Product information "Hobbywing Xerun Axe FOC Combo for Rock Crawler 2300kV


Intelligent Torque Output and Speed Closed-loop Control for Easy Control!


The ESC will automatically increase torque to help vehicle overcome the resistance when going up, reduce the torque to help vehicle stabilize and control the speed when going downhill (and prevent vehicle from turning over when going downhill too fast).

With the intelligent torque output, driving can become simple and easy.


The XeRun AXE motor with 1200KV is hardware specifically adapted to the XeRun AXE FOC speed controller and can only be used with it.

The motor is built with the Hobbywing patented "Staggered Pole" rotor design and the 4-pole motor has extremely low cogging efffect and super small torque ripple.

Super soft response and start-up behavior at low speeds is the result.


The motor and controller are connected via a waterproof, special sensor plug.


Specifications ESC:


Typ:            Brushless FOC

Current cont./peak 60A/360A

Input Voltage:    2S-3S LiPo, 6S-9S NiMH

Motor Limits:    Only XeRun-AXE serie of motors

BEC:            6V/7.4V, 3A

Waterproof:    Yes

Programmable:    Bluetooth and APP "HW LINK"

Size:            47.4x36.2x24.6mm

Weight:            82g

Application:    1/10 Rock Crawler


Specifications Motor:


Typ:             Brushless FOC

Pole:             4

KV Rating:     2300KV

LiPo cells:     2S-3S

No Load Current:    1.5A

Outer Diameter:     36.0mm

Length:             48.8mm

Shaft Diameter:     3.17mm

Shaft Length:     13.3mm

Weight:             175g

Application:     1/10 Rock Crawler

Hobbywing Combo XeRun AXE540 2300kv FOC Sensored Brushless System

Gratis verzending

Boven de €50,- gratis verzending NL

  • Merk: Hobbywing
  • Model: HW38020250
  • Beschikbaarheid: Binnen 48/uur verzonden
  • € 219,95
  • Excl. BTW: € 181,78
