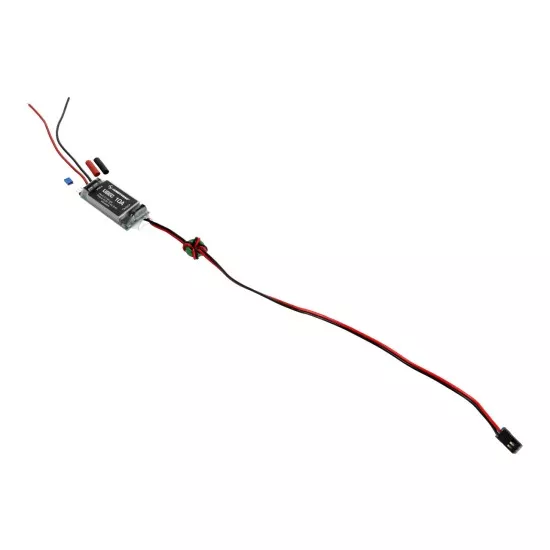

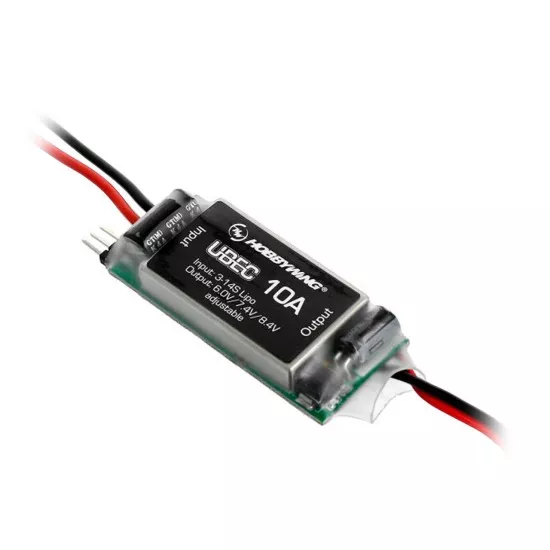

Hobbywing BEC 10A HV Air UBEC Regler for 3-14s

Hobbywing BEC 10A HV Air UBEC Regler for 3-14s

The UBEC uses a high-performance DC voltage regulator with switching module that draws its voltage from 3-14S LiPos.

With it the regulator gives out 10A extremely stable or for a short amount of time 25A.

Therefore this UBEC provides power for all kinds of RC modell devices. It is also suitable for fixed wing aircraft.

Features:

Highly efficient DC-DC regulator chip for a transmission efficiency of over 90%.

An all-metal housing design helps conduct heat and reduces electromagnetic interference.

Adjustable UBEC output voltage (6.0V / 7.4V / 8.4V) applicable for servos with different voltages.

Multiple protection functions: overcurrent protection, output short circuit protection, overheating protection, safe and reliable.

LED display to show the status of the UBEC.

Technical Specifications:

Input Voltage: 3-14S LiPo

Output Voltage: 6.0V / 7.4V / 8.4V (adjustable)

Current cont./peak: 10A / 25A

Dimensions: 55x25x12mm

Weight: 35g
