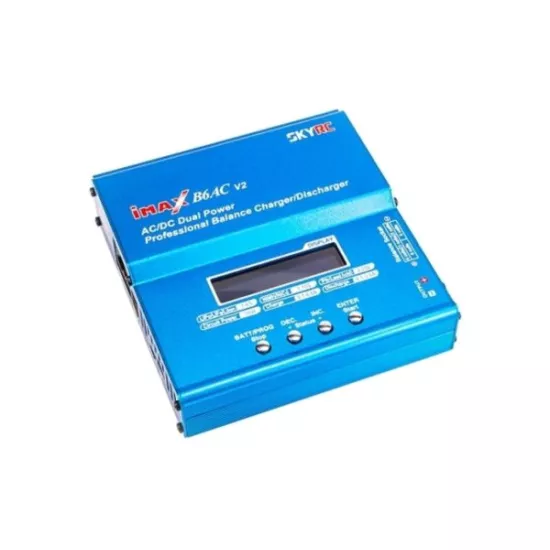

SkyRC iMAX B6AC v2 Professional Balance Charger/Discharger

SKYRC B6AC v2 is the upgraded version for well-known IMAX B6AC v1. Compared with B6AC v1, it is more accurate and stable and also has some new features and functions.

Users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. What's more, users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter.

There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safer than v1.

SKYRC B6AC v2 is a high-performance, micro processor control charge/discharge station with battery management suitable for use with all current battery types, with integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium iron phosphate(LiFe) and Lithium-Ion (LiIon) batteries; maximum 6A charge current and maximum 50W charge power.

PC Control

The user can monitor pack voltage, cell voltage and other data during the charging, view charge date in realtime graphs, and can also control charging and update firmware from "Charge Master".

Smart Phone Control & Monitor Via Wi-Fi Module

This charger can be controlled and operated by smart phones via Wi-Fi module (both iOS and Android ).

Technical Data:

Dimersions (HxBxL): 36 x 135 x 144mm

Net Weight: 632g

Input Voltage:

AC: 100-240V

DC: 11-18V

Circuit Power:

Max Charge: 50W

Max Dischage: 5W

Charge Current Range: 0.1-6.0A

Discharge Current Range: 0.1-2.0A

LiPo/LiFe/LiIon Cells: 1-6S

NiMH/NiCd Cells: 1-15S

Pb battery Voltage: 2-20V
