RC4WD Bully II MOA Competition Crawler Kit (Z-K0056)

RC4WD Bully II MOA Competition Crawler Kit (Z-K0056)

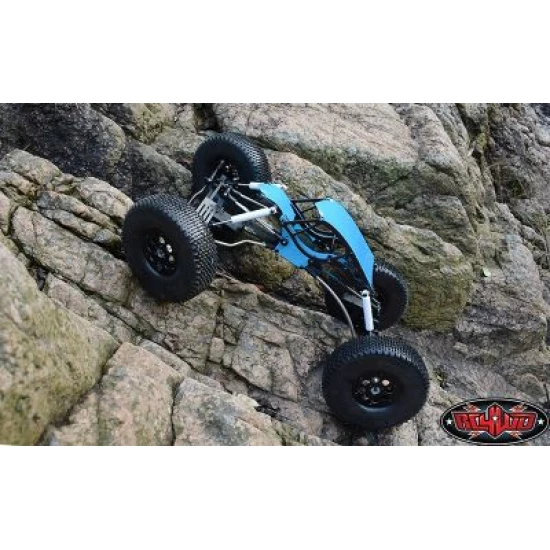

The Bully 2.2 MOA Competition Crawler Kit is ready to be built and compete. The Bully 2.2 offers unmatched features that include carbon fiber chassis, Bully 2.2 Competition CNC machined axles, aluminum shocks, titanium links, carbon fiber and delrin Rocker 2.2_ Beadlock Wheels and Bully Advanced X2SS Compound Competition Tires.

The Bully 2.2 MOA Competition Crawler Kit components are built with the intention to meet the U.S.R.C.C.A rules and destroy the competition. Bully axles offer ultimate strength and durability, full ball bearings, steel internal heavy duty gears, XVD_s, clockable C_s, sleek gearbox and tons of adjustability to meet your needs.

The MOA allows for ultimate control with its dual motor setup. This will reduce your center of gravity and increase the run time. Pair it with a Rocker Dig II (Z-E0028) to allow for independent control of the motors giving you optimum power and other useful functions on the rocks.

Not all RC Crawler manufacturers are created equally, RC4WD sets itself apart from the competitors by offering amazing quality and details. Adding to our portfolio is this crafted crawler that will without a doubt rock your world with its out of the box features! No other crawler or crawler company can compare. The Bully 2.2 MOA Competition Crawler is a game changer!

Features

CNC Machined Aluminum Axles

MOA (Motor on Axle Design)

Steel Internal Heavy Duty Gears

Bully 2.2" Competition Tires (Advanced X2SS Compound)

Carbon Fiber and Delrin Wheels

Clockable C's

Aluminum Shocks

Titanium Links

Carbon Fiber and Delrin Chassis

High Clearance Chassis Design

Carbon Fiber Battery Plate

Easy to Paint Lexan Body Panels

Endless Customizing for Unique End User

Bully 2 Competition Crawler Axles

Ratio: 40.7 : 1

Pinion Gear: .8 Mod 14T

Hex Width: 219.5mm

Hardened Steel Gears

Case Material: Billet Aluminum

Bully 2 Suspension

4 Link Front and Rear Suspension

Shock Absorbers

Internal Spring 90mm Shocks - Can Be Oil Filled

Wheels

Type: 2.2" Lightweight Competition Beadlock Wheels

Hub: Hex Type

Width: 25.3mm

Back Spacing: 15mm

Bully 2 Dimensions

Wheelbase: 317mm (12.5")

Width: 254mm (10")

Height: 182mm (7.2")

Ground Clearance: 92mm (3.6")

Final Drive Ratio: 40.7 : 1

Weight: 4.38lbs / 1.99Kg

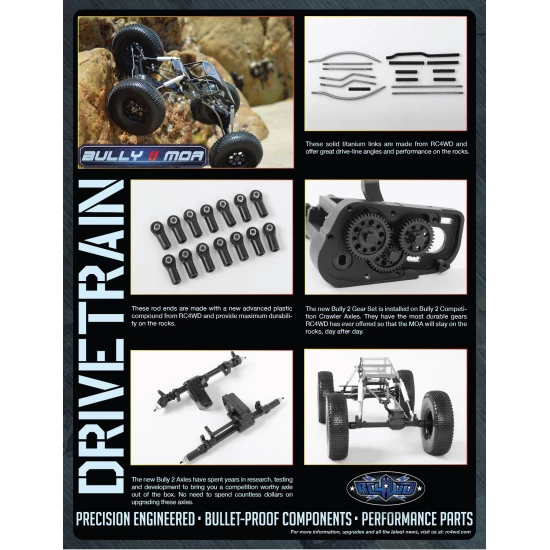

Drivetrain

These rod ends are made with a new advanced plastic compound from RC4WD and provide maximum durability on the rocks.

These solid titanium links are made from RC4WD and offer great drive-line angles and performance on the rocks.

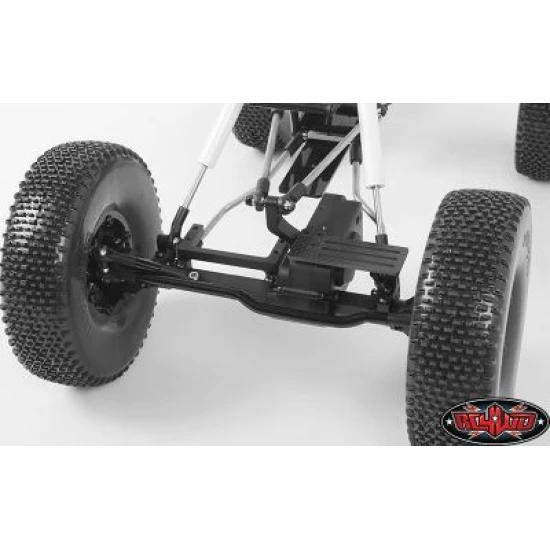

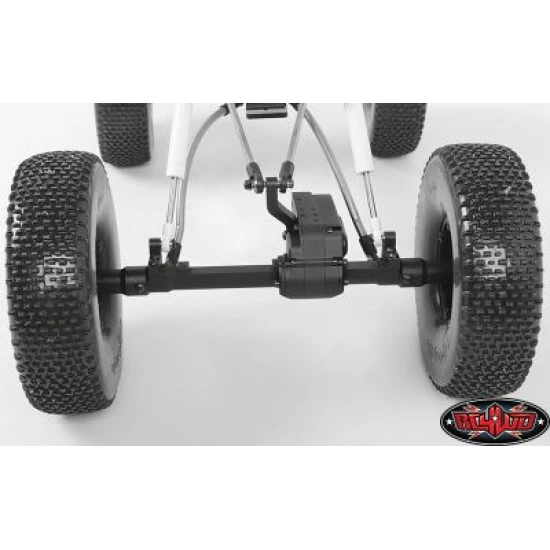

The new Bully 2 Axles have spent years in research, testing and development to bring you a competition worthy axle out of the box. No need to spend countless dollars on upgrading these axles.

The new Bully 2 Gear Set is installed on Bully 2 Competition Crawler Axles. They have the most durable gears RC4WD has ever offered so that the MOA will stay on the rocks, day after day.

Suspension

Aluminum shocks feature a completely new design from the ground up and are built to handle all terrains. Your crawler will be able to battle all the flex needed to conquer the rocks.

The high-quality carbon fiber and delrin materials make these wheels super lightweight, while still providing ample strength to support the weight of the MOA crawler.

Designed to be an out of box competition crawler tire, the Bully 2.2 is created with the help of the RC4WD Crawler Team with full testing completed in multiple conditions and terrains.

The MOA chassis is machined with carbon fiber material. This is a new high-quality material RC4WD uses to make the MOA lighter to bring you the best options for your crawling style.

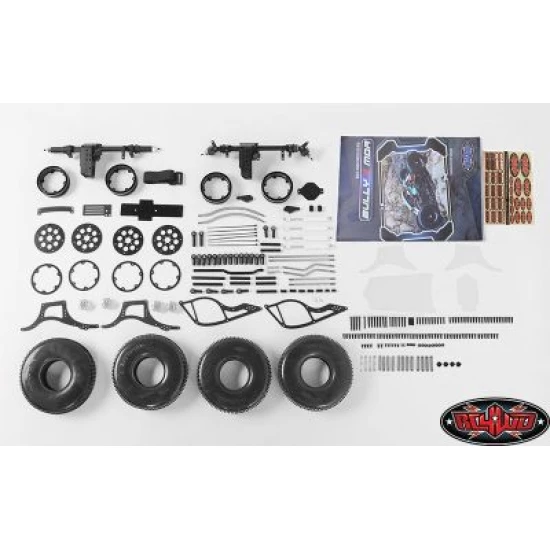

What's Included:

1x RC4WD Bully II MOA Competition Crawler Kit

This kit requires building time (approx. 2-3 hours) and electronics.

Notes:

While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.

Use good quality hex drivers to avoid stripping screw heads.

Use thread lock when putting metal screws into metal parts.

Steps marked with a "water-drop" require thread lock.

Use thread lock sparingly.

Do not over tighten screws otherwise you may strip the thread.

Required to Complete:

Truck Kit

Hex Drivers (1.5mm, 2mm, 2.5mm)

Long Nose Pliers

Side Cutter Pliers

Associated Thread Locking Adhesive

Cross Wrench or Nut Driver

Electronics:

Motor (35t, 45t, or 55t)

Rocker Dig II (Electronic) for MOA Crawler (Z-E0028)

Radio and Receiver (2 channel or more) (3 Channel Z-R0009 or 4 Channel Z-R0006)

1x Twister High Torque Metal Gear Digital Servo (Z-E0035)

Battery (Consult your "ESC" manual) or Lipo battery

Charger (Consult your battery guide) Chargers

Replacements Parts:

RC4WD MOA Competition Crawler Chassis Set (Z-C0047)

Heavy Duty Steel Black 3mm Con Washers (10) (Z-S0843)

Bully 2 Competition Crawler Steering Link Kit (Z-S0952)

Bully 2 Competition Crawler Front Axle (Z-A0012)

Bully 2 Competition Crawler Rear Axle (Z-A0084)

RC4WD Superlift Superide 90mm Scale Shock Absorbers (Z-D0015)

RC4WD M3/M4 Plastic Long Rod Ends (Z-S1375)

RC4WD M3/M4 Plastic Short Rod Ends (Z-S1378)

M3 Plastic Bent Rod End (Z-S0074)

Rocker 2.2" Lightweight Competition Beadlock Wheels (Z-W0178)

Bully 2.2" Competition Tire (Z-T0134)

Heavy Duty Nylon Strap Lock (5) (Z-S0552)

RC4WD Medium Decal Sheet (Z-S1272)

RC4WD Bully II MOA Titanium Link Set (Z-S1801)

Optional Parts:

RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061) (Rear Only)

RC4WD Rock Krawler RRD Emulsion Scale Dual Spring Shocks (90mm) (Z-D0052) (Rear Only)

Chubby Mini 3 TON Scale Jack Stands (Z-S0731)

Rocker Dig II (Electronic) for MOA Crawler (Z-E0028)

XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0006)

Twister High Torque Metal Gear Digital Servo (Z-E0035)

RC4WD Brushed 35T Boost Rebuildable Crawler 540 Motor (Z-E0045)

RC4WD Brushed 45T Boost Rebuildable Crawler 540 Motor (Z-E0041)

Bully 2 Knuckle Weights (Z-S1202)

Bully 2 8 Degree Steering Knuckles (Z-S1013)

Bully 2 8 Degree C Hubs (Z-S1019)

Universal Set for Bully 2 Competition Crawler Axles (Z-S1919)
