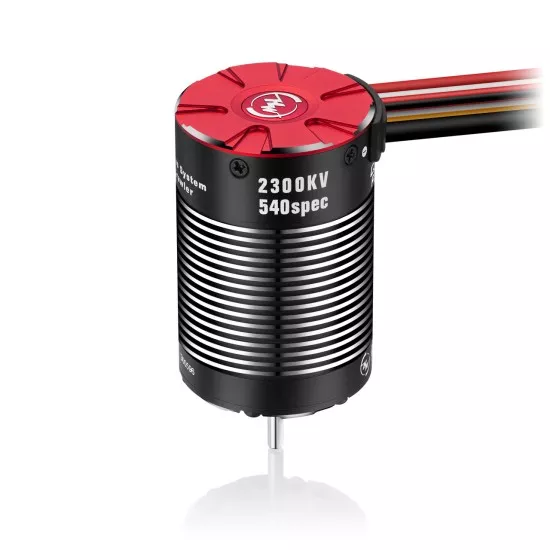

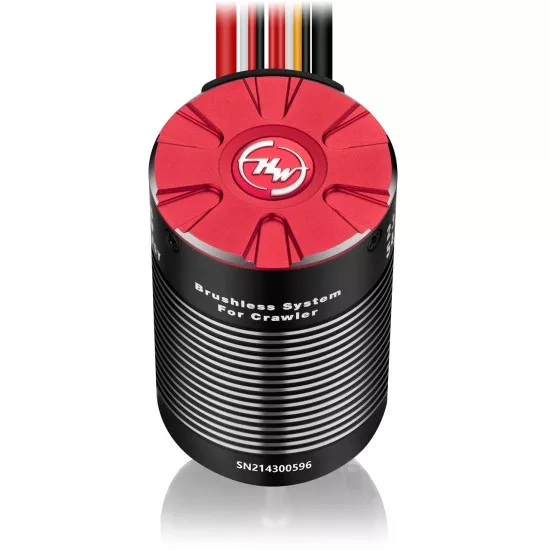

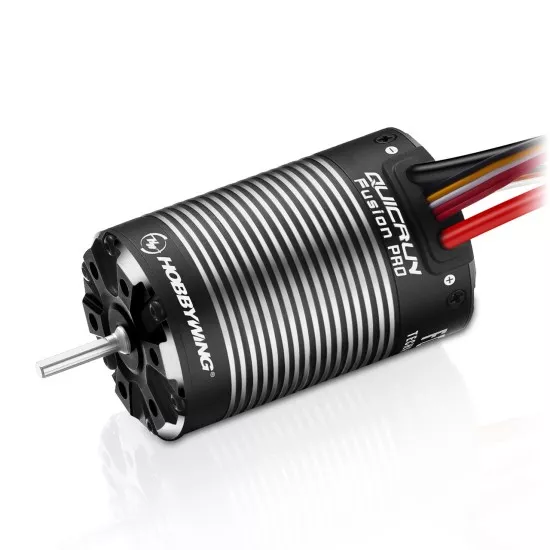

Quicrun Combo-Fusion-2300KV ( Crawler ) Motor and ESC in one

Quicrun Combo-Fusion-2300KV ( Crawler ) Motor and ESC in one

The QuicRun Fusion Pro is the evolution and improvement of Hobbywing's first ever created 2-in-1 combo, the regular Quicrun Fusion.

1/10 crawlers get a space and weight-saving motor and ESC in one item combined. Now even stronger and better.

Space in the car is often very limited and there is only little room to accommodate the various cables properly.

But that's finally over now. With a length of only 58mm and thus just as big as a typical motor and with a weight of only 209g You wouldn't notice that motor and controller are combined here.

Thanks to the intelligent torque and speed control, a crawler with this combo can easily adapt to any situation. Of course, the Fusion Pro is equipped with an excellent waterproof and dustproof casing.

So the fun really knows no bounds. Even the electronic switch is protected accordingly.

The technology used here is called FOC (Field-Oriented-Control) and is responsible for this great feeling of control.

The performance of this drive has increased by a whopping 8% compared to its predecessor and the power consumption has even been reduced by 30%.

This consumes less battery capacity and increases the driving time.

Features

2in1: Motor and controller combined in one

Compact design ideal for gaining space and reducing weight

Noticeable improvement in performance

FOC drive, ideal for crawlers

3 operating modes

Normal (Forward, Reverse with brake)

Normal (Forward, Reverse)

Constant Speed (Forward, Reverse)

Refined parameter settings as well as 4 new parameters

Max Braking Power

RPM Decrease Rate

Punch

Neutral Range

Powerful torque even at slow speeds

Suitable for all weather and track conditions

Strong built-in BEC with voltage switching function

Various safety mechanisms against: undervoltage, overheating, loss of gas, etc.

Programmable with the LED programming box

Technical Specifications:

Type: Brushless FOC Sensored

Current (cont./peak): 60A/200A

No. of Cells: 2-3S LiPo, 6-9 cells NiMH

BEC: 6V/7.4V with 6A

Poles: 4

RPM: 2300kV

Outer Diameter: 37mm

Length: 58mm

Shaft Diameter: 3.175mm

Shaft Length: 16mm

Waterproof: Yes

Connection: XT60

Programming: - LED Program Box

- integrated Programming Interface

Weight: 209g

Application: 1/10 Crawler

Delivery:

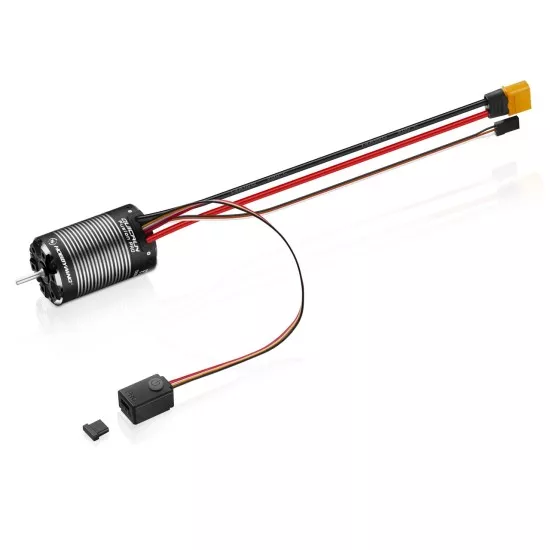

Quicrun Fusion Pro FOC motor with integrated

XT60 plug

Decal and manual

Heatsink Kit, double sided tape and zip ties
