The XR10 JUSTOCK G3 ESC in its Handout version was specially developed for races and training rides and differs from the regular G3 ESC by the differently set RPM limits, with which the limit can be set according to the racing requirements - gradually adjustable from 18,000 - 33,500RPM or completely unregulated.

In addition, there is the fixed "0" timing, which is often required for races.

So get ready for a fair and successful race.

Lots of new Features

Another new feature is that the motor can now turn clockwise or counterclockwise thanks to the Justock G3 ESC.

This makes it possible to use it in far more cars than its predecessor.

And just like the direction of rotation of the motor, the BEC voltage can also also be programmed.

You can freely choose between 6 and 7.4V via the smartphone with the OTA programming module or the LCD programming card. In addition to the countless safety functions, the G3 version comes with reverse polarity protection, which ideally prevents damage caused by incorrectly plugging in the battery.

The Xerun series by Hobbywing exclusively comprises sensor-based brushless systems for professional racing use. The product range extends from 1/12 to 1/8 as well as from "Modified" to "Stock".

The excellent performance, the high reliability and some other features meet the high demands of top-level drivers in all respects.

Features

RPM limit set higher than the normal Justock G3 ESC

Perfectly suited for competition thanks to the RPM-Limit and 0-Timing options

Motor direction of rotation free choosable (CW or CCW)

Adjustable BEC Voltage (6V or 7,4V)

Robust aluminum housing for ideal heat dissipation

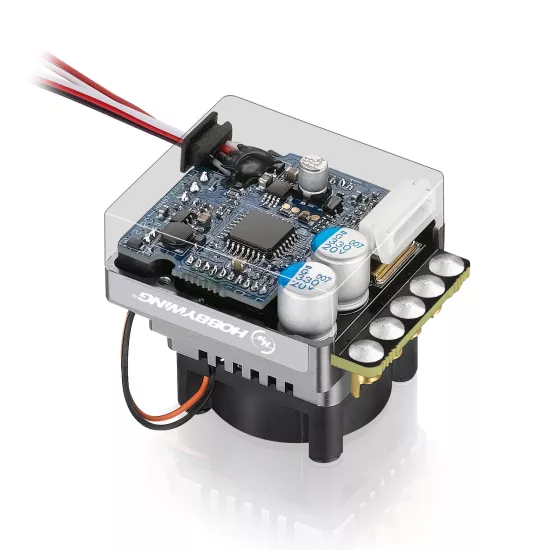

Built-in capacitors as a space-saving solution compared to external capacitors

Various protective functions against

Polarity reversal

Overheating

Undervoltage shutdown

Fail-safe

Motor lock-up

Numerous possibilities for programming (LED / LCD programming, WiFi / OTA module, ...)

Firmware upgrades possible to always be up to date

Technical Specifications

Type: Brushless, Sensored

Power cont./peak 60A / 380A

Input Voltage: 2S Lipo

BEC: 6V / 7.4V @ 4A

Motor Types: Brushless Motors (sensored and sensorless)

Motor Limit: >=10.5T 3650 Motor

Fan: Yes, Input via BEC

Programming:

SET-Button, LED Programming Box, LCD Programming Box, Wifi Module, OTA Module, separate Programming Port

Dimensions: 40.9x33.9x32.1mm

Weight: 75.4g

Application: 1/10, 1/12 On-Road and Off-Road Competition and Training (e.g. Touringcar, Buggy)

Optional Accessories:

HW30501003 LED Programming Box

HW30502001 LCD Programming Box

HW30850400 OTA Programmer
