Hobbywing Quicrun Brushed WP1080 Combo 555 13 Turn

Hobbywing Quicrun Brushed WP1080 Combo 555 13 Turn

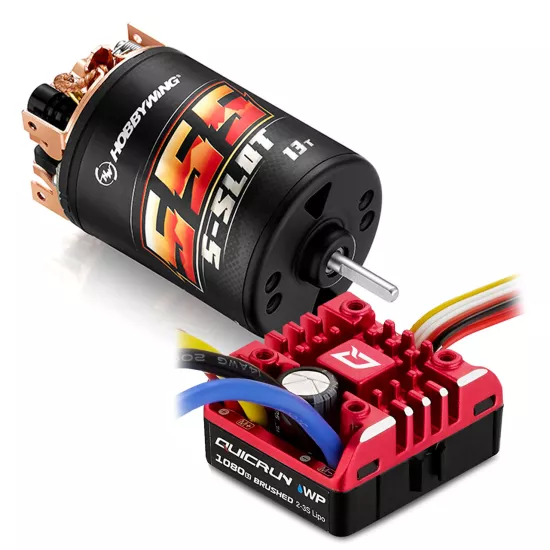

Thanks to this powerful combo which includes the Quicrun WP1080 G2 ESC and the 555 Quicrun Brushed motor with 13T, the next 1/10 scale crawler adventure will turn into a fantastic experience.

The Hobbywing Quicrun WP1080 is with its G2 version one of the first ESCs with a real Car Mode.

This means that the direction of the motor can be switched in real time. This is possible by using the idle channel on the transmitter and thus providing a unique driving experience unlike any seen before.

The handbrake force can also be adjusted in real time, which would otherwise have to be changed via external programming as known from other ESCs.

Compared to the previous model, the Quicrun WP1080 G2 controller offers different upgrades.

For example the BEC not only can be set to 6V and 7.4V - even 8.4V at 6A are now possible.

A whopping 15 adjustable parameters and over 90 values also ensure that the ESC can be completely adapted to Your own needs.

Crawlers are well equipped with the matching motor, which is made of high-quality materials and has an adjustable timing from -20° up to +20°.

Features:

Specially designed for 1/10 Rock Crawlers

BEC: 4A continuous and up to 6A peak, adjustable to 6V, 7.4V or 8.4V

Waterproof according to the IP67 standard

15 parameter items for personal ESC settings

Perfectly adjustable drag brake

Separate programming port

Small, light and yet robust

XT60 connector installed

Great efficiency with adjustable timing

Zero-togging torque design

Incl. PCB board to avoid interference

Easily dismantled for maintenance work

Technical Specifications:

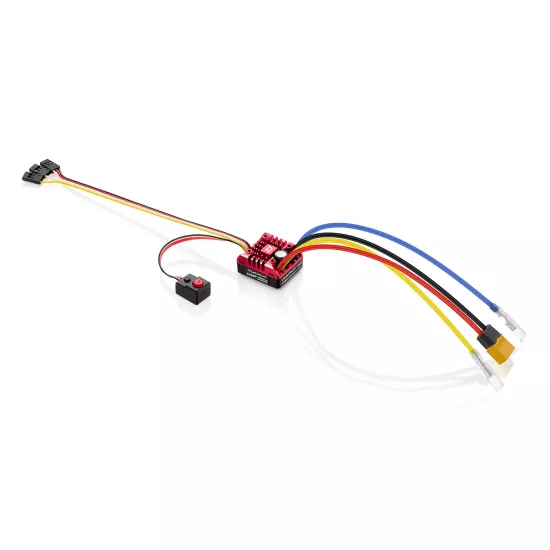

ESC

Type: Brushed

Current (cont./peak): 80A/400A

Cells: 2-3S LiPo / 5-9 cells NiMH

BEC: Switch Mode: 6V/7.4V @ 3A, 6A peak

Battery Plug: XT60

Dimensions: 37.2x31.9x18.4mm

Weight: 70.2g

Waterproof: Yes

Application: 1/10 Rock Crawler

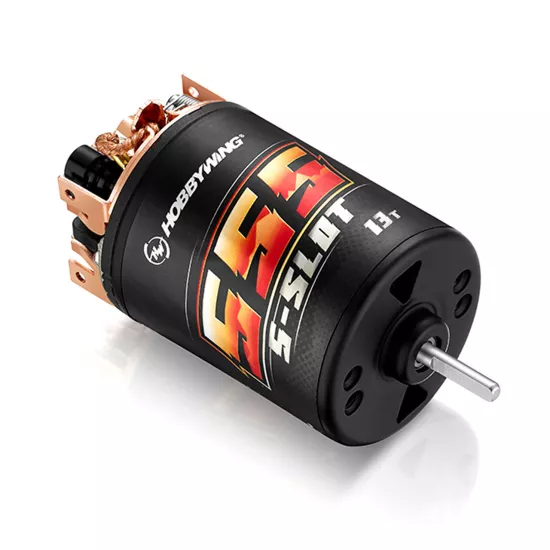

Motor

Type: Brushed

Turns: 13T

RPM @ 7.4V: 14 000

Input Voltage: <=12.6V

Slots: 5

Length: 58.5mm

Diameter: 36mm

Shaft Diameter: 3.175mm

Weight: 193g

Application: 1/10 Crawler, Short Course Truck, Monster Truck
