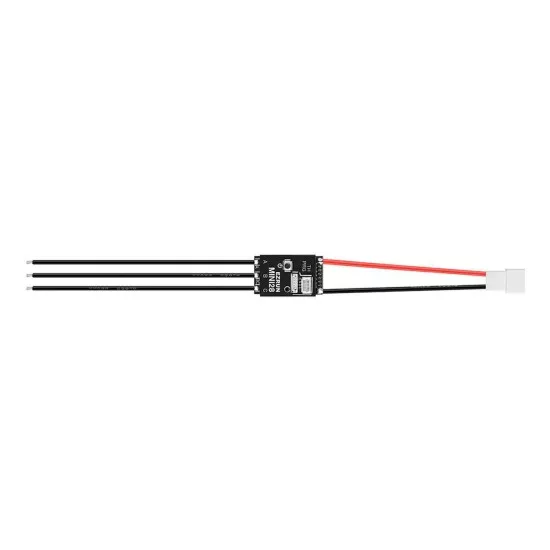

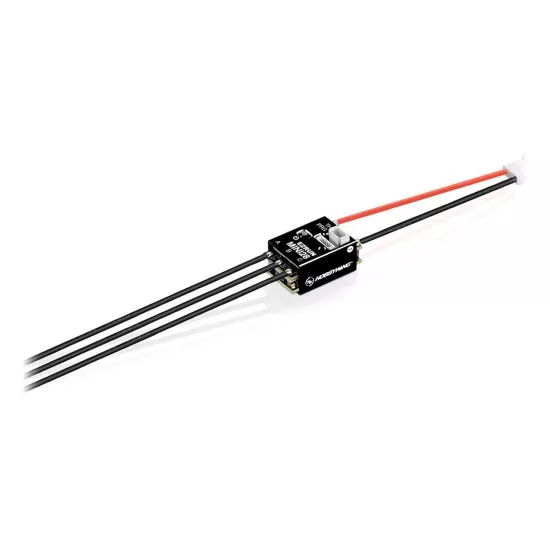

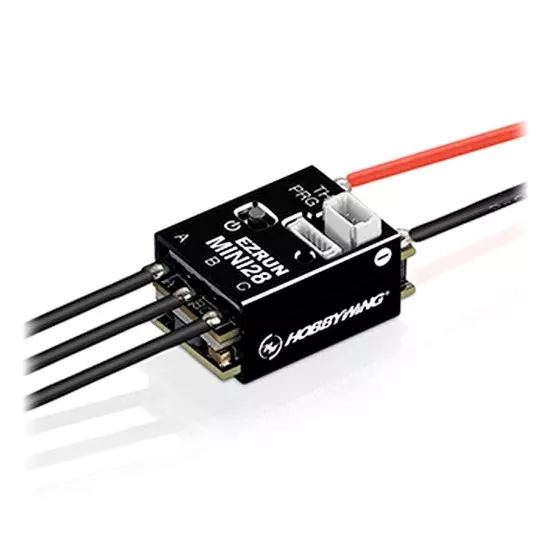

Hobbywing Ezrun MINI28 Brushless 30 Amp, 2s LiPo, BEC 3,5A

Hobbywing Ezrun MINI28 Brushless 30 Amp, 2s LiPo, BEC 3,5A

The Ezrun MINI28 ESC offers everything You need for fully experiencing 1:28 RC care.

With over 25 different adjustable parameters, the MINI28 shows that it allows the car to handle numerous situations with ease.

So if you like to drive a Mini and use a brushless motor, this Hobbywing ESC is the ideal addition to Your setup.

Adjustable parameters

General

Running Mode, max. forward force, max. reverse force, cutoff voltage, ESC thermal protection, motor rotation

Throttle Control

Throttle Rate Control, Neutral Range, Initial Throttle Corce, Coat, PWM drive frequencym Softening value, Softening range

Brake Control

Drag brake force, max. brake force, brake rate control, brake frequency

Timing

Boost timing, boost timing activation, boost start RPM, boost end RPM, turbo timing, turbo delay, turbo increase rate, turbo decrease rate

Features

Specially developed for use in 1/28 mini racing

Small and light ESC

Over 25 different parameters

Huge improvement in driving experience

Various built-in protections

Compatible with LCD G2 programming box and OTA programming module

Technical Specifications

Current (cont./peak) 30A / 80A

Motor Type: Brushless Motors

Motor Limit: 1626 Motors

LiPo-/NiMH cells: 2S LiPo

BEC-Output: 6V / 7.4V (adjustable), 3.5A Switch Mode

Dimensions: 22.7x14.2x11.8mm

Weight: 5g (without cable)

Application: 1/28 Mini

Programming Port: Shared with throttle cable
