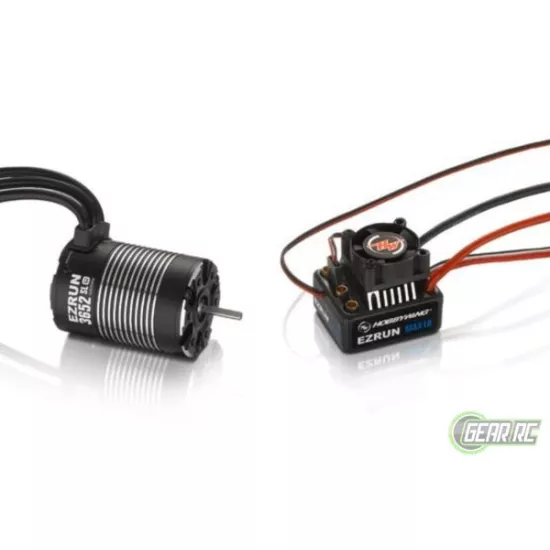

Hobbywing EzRun Combo MAX10 3652SL, 3300kv, 1/10 Waterproof

Hobbywing EzRun Combo MAX10 3652SL, 3300kv, 1/10 Waterproof

The MAX10 uses a Motor Thermal Protection circuit (in Sensorless Mode)

When pairing the MAX10 with a Hobbywing matching motor (i.e. EzRun 3652/3660 G2 motor), the temperature sensor cable on the ESC will monitor the motor temperature and protect the motor from irreversible damage due to overheating in real time.

Capacitor Thermal Protection

The capacitor thermal protection first implemented in the MAX10 will effectively protect capacitors from diaelectric failure causing irreversible damage to the ESC due to overload.

High Reliability & Durability

Built with high-quality components and coupled with cutting-edge firmware, the MAX10 is able to deliver unmatched power and performance for even the most extreme racing applications, but it is also responsive enough to protect itself

from damage due to overloading due to physical abuse, overuse or even human error.

Super Internal BEC

The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows the use of various high voltage servos.

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the MAX10 to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.

Advanced and Secure Electronic Switch

The MAX10 features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.

Regular Firmware Updates Free of Charge

You can upgrade the MAX10 with the Hobbywing WiFi/USB LINK software, a WiFi module/ LED or LCD program box and a smartphone/laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.

Speed Control Specifications

Type

Scale - 1/10th

Sensored/Sensorless - SL

Brushed/Brushless - BL

Waterproof - Yes

Wires & Connectors

Input Wires - Red-14AWG-200mm*1/Black-14AWG-200mm*1

Output Wires - Black-14AWG-200mm*3

Input Connectors - No

Output Connectors - 3.5 Bullet Connectors (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

Cont./Peak Current - 60A/450A

Input Voltage - 2-3S LiPo/6-9 Cells NiMH

BEC Output - Switch Mode: 6V/7.4V,3A

Fan

Size - 25.0x25.0x10.0mm

Voltage Range - 5-7.4V

Powered by - BEC

ESC Programing via

SET Button on ESC - Supported

LED Program Box - Supported

LCD Program Box - Supported

WiFi Module - Supported

Program Port - PRG/Fan Port

Firmware

Firmware Upgrade - Supported

Size & Weight

Size - 39.4x32.8x23.1mm

Weight - 67.8g

Applications

Motors

SL BL Motors/SD BL Motors (only in SL mode)

Vehicles

1/10th Buggy, On-road, and Light-weight 2WD SCT, Truck and Monster Truck

KV Rating/T Count

2S LiPo: KV=6000;3S LiPo: KV=4000 (3652 Series of Motors)
