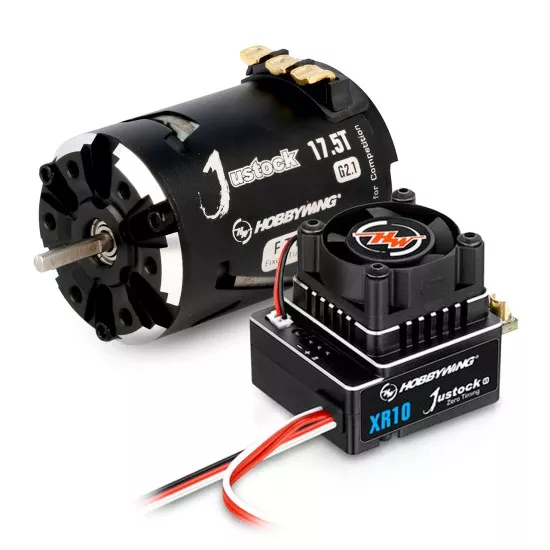

Hobbywing Combo XR10 JS5 G3 Black G2.1 17.5 Turn 2450kV

Hobbywing Combo XR10 JS5 G3 Black G2.1 17.5 Turn 2450kV

A combination of the JUSTOCK 3650SD G2.1 motor and the XR10 JUSTOCK G3 ESC, this combo is perfectly matched for the ambitious stock or races.

The XR10 JUSTOCK G3 ESC was specially developed for races and training drives.

The brand new RPM Limit programming option ensures that the limit can be adjusted depending on the racing requirements - from 12.500RPM up to 25.000RPM as well as unlimited.

In addition, there is the well-known fixed 0-Timing, which is often required in races. So get ready for a fair and successful race.

Thanks to new programming options compared to its predecessor, it is now also possible to determine the direction of rotation of the motor as well as to set the BEC voltage to a certain value.

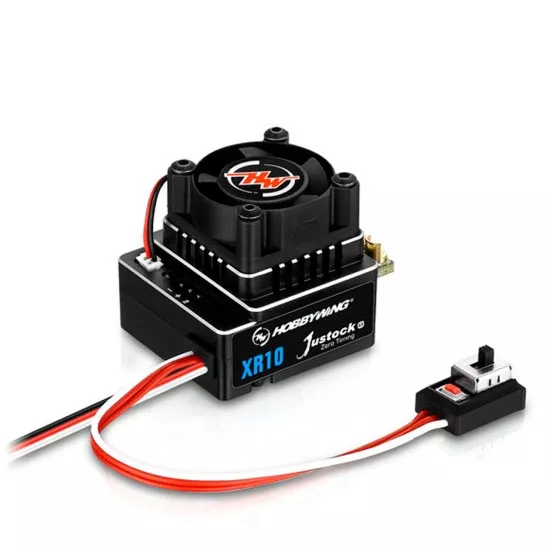

Features (ESC)

Perfect for competition thanks to RPM limits and 0 timing

Direction of motor rotation free choosable (CW or CCW)

Adjustable BEC voltage (6V or 7,4V)

Robust aluminum housing for ideal heat dissipation

Built-in capacitors as a space-saving solution compared to external capacitors

Various protective functions against polarity reversal, overheating, Fail-safe and more

Numerous possibilities for programming (LED / LCD programming, WiFi / OTA module, ...)

Firmware upgrades possible to always be up to date

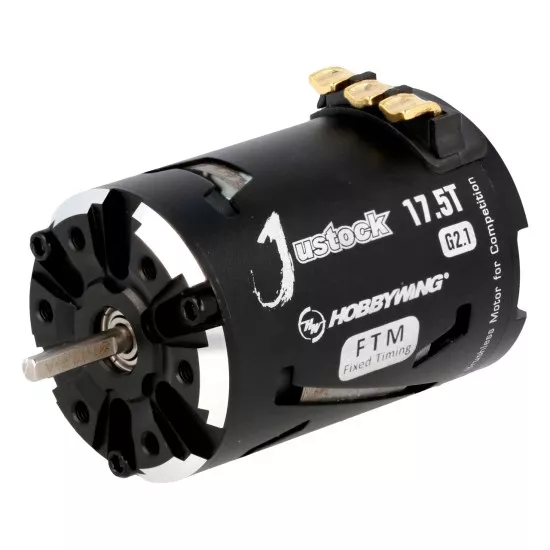

Features (Motor)

Heat-resistant magnet and double insulated windings

Precision bearings

Cool look and good heat-dissipation

Linear and smooth control

Re-buildable design

Technical Specifications (ESC)

Type: Brushless, Sensored

Power cont./peak 60A / 380A

Input Voltage: 2S Lipo

BEC: 6V / 7.4V @ 4A

Motor Types: Brushless Motors (sensored and sensorless)

Motor Limit: >=10.5T 3650 Motor

Fan: Yes, Input via BEC

Programming:

SET-Button, LED Programming Box, LCD Programming Box, Wifi Module, OTA Module, separate Programming Port

Dimensions: 40.9x33.9x32.1mm

Weight: 75.4g

Application: 1/10, 1/12 On-Road and Off-Road Competition and Training (e.g. Touringcar, Buggy)

Technical Specifications (Motor)

Typ: Brushless / Sensor

Pole: 2

KV Rating: 2450KV

Windings: 17.5T

LiPo Cells: 2-3s

No load Cutrrent: 3.5A

Outer Diameter: 35.9mm

Length: 52.5mm

Shaft Diameter: 3.17mm

Weight: 175g

Timing: Fixed

Applications: 1/10, 1/12 Touring Car and Buggy (Stock Class)

Contents

1x ESC

1x Motor
