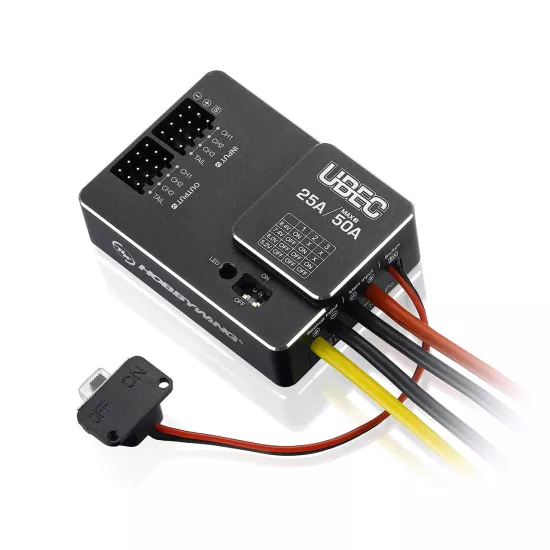

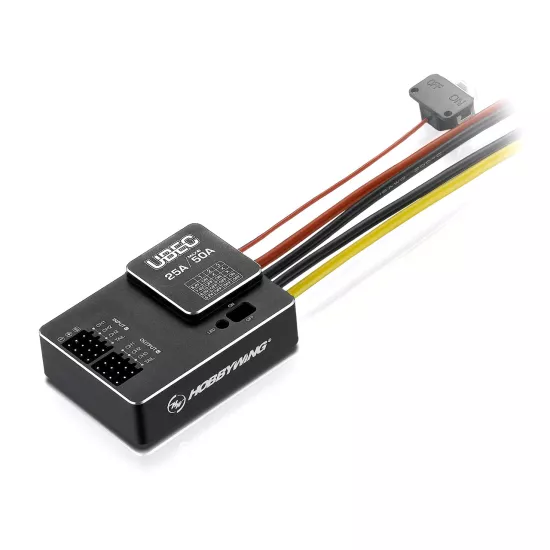

Hobbywing BEC 25A UBEC ESC for 3-18s

Hobbywing BEC 25A UBEC ESC for 3-18s

With the Hobbywing UBEC 25A HV you supply your receiving system safely and efficiently with power from a connected LiPo battery of 3 - 18s.

A big advantage of the Hobbywing UBEC is the option of selecting the output voltage for the servos used. This is adjustable in four steps from 5.2V up to 8.4V.

For optimal security of the power supply, there is the option of connecting an external, additional backup battery.

This automatically takes over the supply if the main battery should be empty or defective.

This powerful UBEC is used in large helicopters and planar models with correspondingly powerful servos and the corresponding number.

Features:

Switching BEC with an efficiency of over 90%

4-way adjustable output voltage

Protection functions for overcurrent, short circuit, overheating, overvoltage and undervoltage

Maximum security through backup function

External on / off switch

Metal case

LED status display

Technical Specifications:

Input Voltage: 3-18s LiPo

Input Voltage  Backup: 1-2s LiPo

Output Voltage: 5.2V / 6.0V / 7.4V / 8.4V

Current cont./peak: 25A / 50A

Dimensions: 55x40.2x17.6mm

Weight: 74g
